BC999

BC999; Genalex, BGE brand, (ID = 2421884) Radio
BC999; Genalex, BGE brand, (ID = 2116677) Radio
Use red slider bar for more.
BC999; Genalex, BGE brand, (ID = 2116677) Radio
Genalex, BGE brand,: BC999 [Radio] ID = 2116677 411x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model BC999, Genalex, BGE (brand), British General Electric Co. Pty Ltd.; Sydney, NSW.:

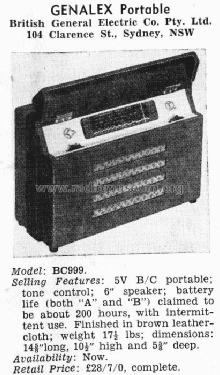

Gelalex model BC999 from Radio Electrical Weekly, 26-7-1948 P9.

Country:  Australia
Manufacturer / Brand:  Genalex, BGE (brand), British General Electric Co. Pty Ltd.; Sydney, NSW.
Year: 1947–1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1T4 1R5 1T4 1S5 1Q5GT
Main principle Superhet with RF-stage; ZF/IF 458 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 90 & 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: BC999 - Genalex, BGE brand, British
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 14.625 x 10.5 x 5.625 inch / 371 x 267 x 143 mm
Notes

MODEL: BC999

Features: 5V, B/C; tone control; 6" speaker; tuned R.F. stage; overall size 14½" x 10½" x 5½"; weighs 17½ lbs.; on/off switch on control panel; inbuilt aerial encircling case; suit case carrying handle; two tone brown leatherette-covered wooden case; uses two 482 and one 745 batteries.

Retail selling price: £28/7/-.

Battery types used:

  • (A) 1 x 745 (Eveready) or 3745 (Diamond)
  • (B) 2 x 482 (Eveready) or 3482 (Diamond)

See also Tasma Model 999.

Net weight (2.2 lb = 1 kg) 17.5 lb (17 lb 8 oz) / 7.945 kg
Price in first year of sale 28.35 Aus£
Circuit diagram reference Australian Official Radio Service Manual Vol. VI
Mentioned in Radio Electrical Weekly, Vol. 27, No. 13 (614h Issue), 26/7/1948, Page 9.
Literature/Schematics (1) Australian Official Radio Service Manual AORSM (Volume 6, 1948, Page 176.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
