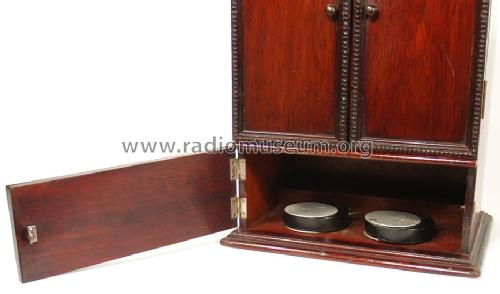

Gecophone Two-valve Cabinet Set (Smoker's Cabinet) BC2001
GEC, General Electric Co Ltd., GENALEX; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- GEC, General Electric Co Ltd., GENALEX; London
- Year
- 1922
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 69121
-
- Brand: Gecophone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Main principle
- TRF with regeneration
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 4 or 6 & 60 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case, TUBES VISIBLE.
- from Radiomuseum.org
- Model: Gecophone Two-valve Cabinet Set BC2001 - GEC, General Electric Co Ltd.,
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 12 x 17 x 9 inch / 305 x 432 x 229 mm
- Notes
-
BBC/PMC stamp; PMG No.2000
To be used at user's choice with one or two 2000Ω headphones or with an BC 2580 amplifier and headphones or a GEC horn loudspeaker.
- External source of data
- Konrad Birkner
- Source of data
- Radio! Radio!
- Mentioned in
- HRSA Radiowaves # 139, January 2017, Page 18.
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
