- Country
- France
- Manufacturer / Brand
- Général-Radio; Dijon
- Year
- 1957/1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 254723
-
- alternative name: General-Radio
Dépliant 1958
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

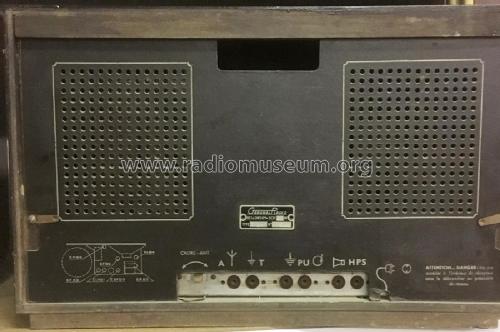

- Model: T64 - Général-Radio; Dijon
- Shape
- Tablemodel with Push Buttons.
- Notes
-
4 gammes d'ondes dont 1 bande étalée (BE). Grand cadre à air blindé incorporé. Clavier 7 touches dont 2 préréglées sur Luxembourg et Europe. Prise pick-up et HP supplémentaire. Commutateur antenne-cadre sur le dos.
Ébénisterie noyer verni, décor laiton et or.
Prix sans supplément TVA. Supplement pour gamme chalutier: 1500 Fr.
- Price in first year of sale
- 36,600.00 FRF
- Literature/Schematics (1)
- - - Manufacturers Literature (Tarif confidentiel provisoire 1957-1958)
- Literature/Schematics (2)
- -- Original prospect or advert
