Hotpoint H55DE

Hotpoint H55DE; Australian General (ID = 610848) Radio

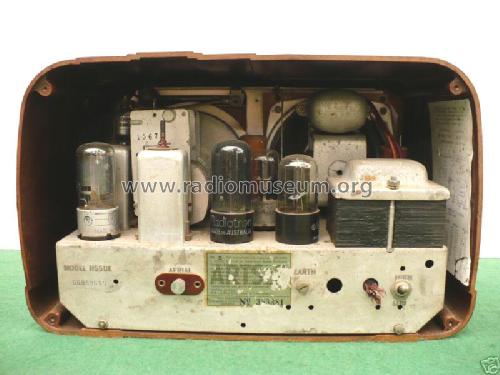

Hotpoint H55DE; Australian General (ID = 435909) Radio Hotpoint H55DE; Australian General (ID = 435911) Radio
Hotpoint H55DE; Australian General (ID = 435910) Radio Hotpoint H55DE; Australian General (ID = 435913) Radio
Hotpoint H55DE; Australian General (ID = 435914) Radio
Use red slider bar for more.
Hotpoint H55DE; Australian General (ID = 435909) Radio
Australian General: Hotpoint H55DE [Radio] ID = 435909 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hotpoint H55DE, Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney:
Q = ebay objnr : 110228297087

Country:  Australia
Manufacturer / Brand:  Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney
alternative name

General Electric Company of Australia Ltd.
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6J8G 6SK7GT 6SQ7GT 6V6GT 6X5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 200-260 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Hotpoint H55DE - Australian General Electric GE
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 320 x 210 x 190 mm / 12.6 x 8.3 x 7.5 inch
Notes

See also AWA Radiola 510-M.

Price in first year of sale 27.30 AUS £
Mentioned in Mingay's "Radio Diagram & I.F. Index
Literature/Schematics (1) Australian Official Radio Service Manual AORSM (Volume 6, 1948, Page 227.)

Model page created by Hugo Sneyers. See "Data change" for further contributors.
