Giannini Broadcast/SW Radio

Giannini Broadcast/SW Radio ; Unknown - CUSTOM (ID = 2071726) Radio Giannini Broadcast/SW Radio ; Unknown - CUSTOM (ID = 2076758) Radio

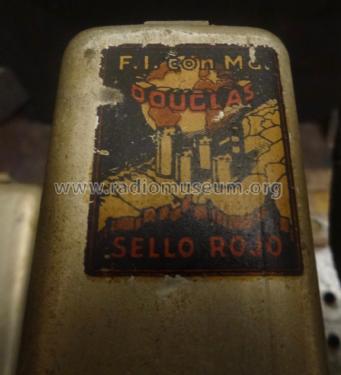

Giannini Broadcast/SW Radio ; Unknown - CUSTOM (ID = 2071728) Radio Giannini Broadcast/SW Radio ; Unknown - CUSTOM (ID = 2071731) Radio
Giannini Broadcast/SW Radio ; Unknown - CUSTOM (ID = 2071733) Radio Giannini Broadcast/SW Radio ; Unknown - CUSTOM (ID = 2071734) Radio
Use red slider bar for more.
Giannini Broadcast/SW Radio ; Unknown - CUSTOM (ID = 2071726) Radio
Unknown - CUSTOM: Giannini Broadcast/SW Radio [Radio] ID = 2071726 1400x821
Select picture or schematic to display from thumbnails on the right and click for download.
For model Giannini Broadcast/SW Radio, Unknown - CUSTOM BUILT: USA:
Frente

Country:  United States of America (USA)
Manufacturer / Brand:  Unknown - CUSTOM BUILT: USA
Year: 1940 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6K7 6A8 75 6C5 6U5 42 80
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 7 inch = 17.8 cm
Power out 4.5 W (unknown quality)
from Radiomuseum.org Model: Giannini Broadcast/SW Radio - Unknown - CUSTOM BUILT: USA
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 572 x 300 x 280 mm / 22.5 x 11.8 x 11 inch
Notes

This is an AC operated 7 tube table radio covering standard broadcast 550-1700 kHz and shortwave 6-18 MHz.

The dial is marked with Z-77 in the left lower corner.

The model is labeled with Giannini Radio Co of America.
We currently don't know the manufacturer or a model designation.

Model page created by Maximiliano Herrada. See "Data change" for further contributors.
