For model 3156, Gonset Inc., Waterproof Elect. Co.; Burbank (CA):
Sams Photofact Folders

Country:  United States of America (USA)
Manufacturer / Brand:  Gonset Inc., Waterproof Elect. Co.; Burbank (CA)
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 6BQ7A 12AT7 6BH6 6BH6 6BH6 6CR6 6AL5 6DS5 6X4
Main principle Superhet with RF-stage; ZF/IF 10100 kHz
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 / 130 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 3156 - Gonset Inc., Waterproof Elect.
Material Metal case
Shape Tablemodel, with any shape - general.
Notes Zhe Gonset Model 3156 is an AC operated 9 Tube AM Communications Receiver.
Tuning Range: 112 - 132 MC.

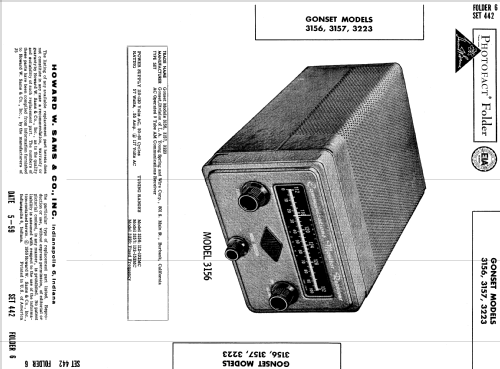

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 5-59, Set 442, Folder 6)

Model page created by Egon Penker. See "Data change" for further contributors.
