3223 ; Gonset Inc., (ID = 698481) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Gonset Inc., Waterproof Elect. Co.; Burbank (CA)
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 6BQ7A 12AT7 6BH6 6BH6 6BH6 6CR6 6AL5 6DS5 6X4
Main principle Superhet with RF-stage
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 3223 - Gonset Inc., Waterproof Elect.
Material Metal case
Shape Tablemodel, with any shape - general.
Notes Zhe Gonset Model 3223 is an AC operated 9 Tube AM Communications Receiver.
Tuning Range: Fixed Frequency.

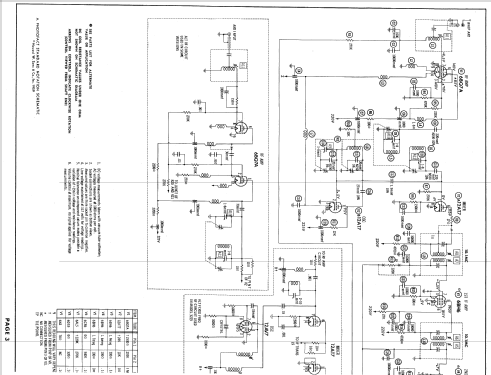

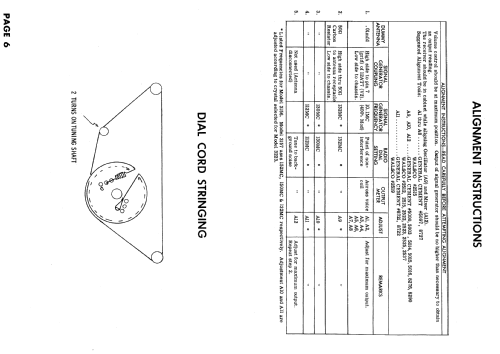

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 5-59, Set 442, Folder 6)

Model page created by Egon Penker. See "Data change" for further contributors.
