G-63

G-63; Gonset Inc., (ID = 2056726) Radio G-63; Gonset Inc., (ID = 2056727) Radio
G-63; Gonset Inc., (ID = 2297170) Radio G-63; Gonset Inc., (ID = 2297177) Radio

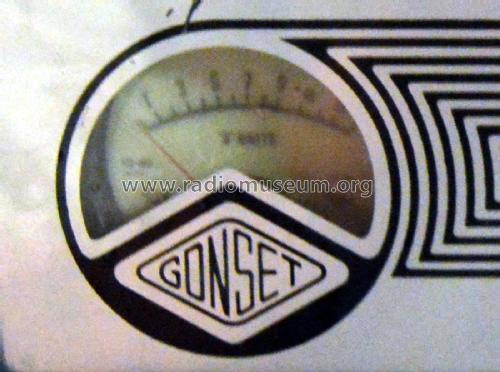

G-63; Gonset Inc., (ID = 2297182) Radio
Use red slider bar for more.
G-63; Gonset Inc., (ID = 2056726) Radio
Gonset Inc.,: G-63 [Radio] ID = 2056726 1400x698
Select picture or schematic to display from thumbnails on the right and click for download.
For model G-63, Gonset Inc., Waterproof Elect. Co.; Burbank (CA):
QST February 1961 page 131

Country:  United States of America (USA)
Manufacturer / Brand:  Gonset Inc., Waterproof Elect. Co.; Burbank (CA)
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 6BZ6 6U8A 6BE6 12AX7 6BA6 6BA6 6AL5 6BE6 6AQ5 5Y3GT 0B2
Main principle Superhet, double/triple conversion; ZF/IF 2065, 263 kHz
Wave bands Short Wave (SW only)
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker - This model requires external speaker(s).
Power out 3 W (undistorted)
from Radiomuseum.org Model: G-63 - Gonset Inc., Waterproof Elect.
Material Metal case
Shape Tablemodel, with any shape - general.
Notes

The Gonset G-63 is an amateur band only receiver, covering 80-10 meters, plus the 6 meter band, in AM, SSB, and CW modes..  It has a drum dial that changes with frequency range.

Price in first year of sale 234.95 USD
Mentioned in Shortwave Receivers - Past & Present (4th ed.) (4th edition page 233)
Literature/Schematics (1) Communications Receivers (4th edition page 31)
Literature/Schematics (2) QST (February 1961 page 131)

Model page created by Wayne Childress. See "Data change" for further contributors.



All listed radios etc. from Gonset Inc., Waterproof Elect. Co.; Burbank (CA)
Here you find 54 models, 46 with images and 25 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
