Bauplan 131

Bauplan 131; Görler, J. K.; (ID = 249942) Kit

Bauplan 131; Görler, J. K.; (ID = 253210) Kit
Bauplan 131; Görler, J. K.; (ID = 1198427) Kit
Use red slider bar for more.
Bauplan 131; Görler, J. K.; (ID = 1198427) Kit
Görler, J. K.;: Bauplan 131 [Kit] ID = 1198427 766x1106
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bauplan 131, Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl):
Foto einer Heftkopie

Country:  Germany
Manufacturer / Brand:  Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)
Year: 1933 ? Category: Kit (Parts plus instruction) or building instructions only
Valves / Tubes 3: RE084 RE034 RES164
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Bauplan 131 - Görler, J. K.; Berlin
Material Various materials
Notes Mit Sparschaltung.
Mentioned in R. Wigand, 65 modernste Rundfunkempfänger (1938)

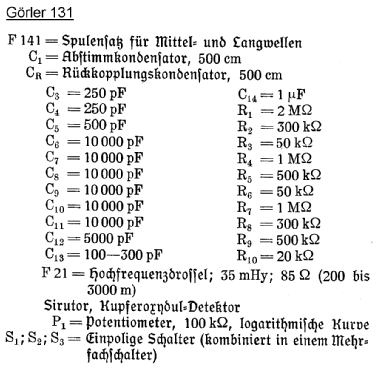

Literature/Schematics (1) Görler Druckschrift 395a, 1939

Model page created by Joachim Glüder. See "Data change" for further contributors.
