Ferrocart-Einbau-Sperrkreis F 10

Ferrocart-Einbau-Sperrkreis F 10; Görler, J. K.; (ID = 794980) mod-past25
Ferrocart-Einbau-Sperrkreis F 10; Görler, J. K.; (ID = 425439) mod-past25 Ferrocart-Einbau-Sperrkreis F 10; Görler, J. K.; (ID = 425863) mod-past25
Ferrocart-Einbau-Sperrkreis F 10; Görler, J. K.; (ID = 425864) mod-past25 Ferrocart-Einbau-Sperrkreis F 10; Görler, J. K.; (ID = 425867) mod-past25
Ferrocart-Einbau-Sperrkreis F 10; Görler, J. K.; (ID = 1587092) mod-past25 Ferrocart-Einbau-Sperrkreis F 10; Görler, J. K.; (ID = 1917463) mod-past25
Use red slider bar for more.
Ferrocart-Einbau-Sperrkreis F 10; Görler, J. K.; (ID = 425439) mod-past25
Görler, J. K.;: Ferrocart-Einbau-Sperrkreis F 10 [mod-past25] ID = 425439 704x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ferrocart-Einbau-Sperrkreis F 10, Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)

Country:  Germany
Manufacturer / Brand:  Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)
Year: 1932–1939 Category: Radio module post 1925 (not a part, not a key)
Wave bands Broadcast only (MW).
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Ferrocart-Einbau-Sperrkreis F 10 - Görler, J. K.; Berlin
Material Bakelite case
Shape Chassis only or for «building in»
Dimensions (WHD) 65 x 35 x 65 mm / 2.6 x 1.4 x 2.6 inch
Notes

Sperrkreis im Bakelit-Gehäuse. Nach Schutzrecht von Hans Vogt Berlin. An der Unterseite Anschlüsse: A1, A2, E. Mit Ferrocart-Eisenkern. Markenname dafür bei Görler "Amenal".
Modell F11 für Langwelle, sonst gleich.

Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Price in first year of sale 5.80 RM
Source of data Katalog Radio-Zentrale Alex v. Prohaska 1935/1936
Mentioned in Görler Druckschrift 395a, 1939

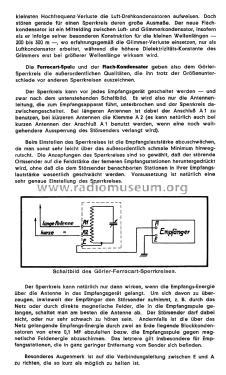

Literature/Schematics (1) Radio-Katalog, Mix & Genest Hansawerke, 1935
Literature/Schematics (2) Die Sendung (21.10.1932)

Model page created by Werner Wussow. See "Data change" for further contributors.
