Oszillator F274

Oszillator F274; Görler, J. K.; (ID = 795365) mod-past25

Oszillator F274; Görler, J. K.; (ID = 2412335) mod-past25

Oszillator F274; Görler, J. K.; (ID = 2479545) mod-past25
Oszillator F274; Görler, J. K.; (ID = 2346043) mod-past25 Oszillator F274; Görler, J. K.; (ID = 2346044) mod-past25
Oszillator F274; Görler, J. K.; (ID = 2346045) mod-past25 Oszillator F274; Görler, J. K.; (ID = 2346046) mod-past25
Oszillator F274; Görler, J. K.; (ID = 2346047) mod-past25 Oszillator F274; Görler, J. K.; (ID = 2346048) mod-past25
Oszillator F274; Görler, J. K.; (ID = 2346049) mod-past25
Use red slider bar for more.
Oszillator F274; Görler, J. K.; (ID = 2346043) mod-past25
Görler, J. K.;: Oszillator F274 [mod-past25] ID = 2346043 1400x750
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oszillator F274, Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)

Country:  Germany
Manufacturer / Brand:  Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)
Year: 1937 ? Category: Radio module post 1925 (not a part, not a key)
Main principle ZF/IF 468 kHz
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Oszillator F274 - Görler, J. K.; Berlin
Material Various materials
Shape Chassis only or for «building in»
Dimensions (WHD) 70 x 130 x 170 mm / 2.8 x 5.1 x 6.7 inch

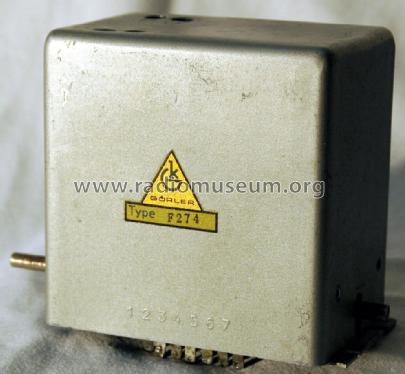

Notes Oszillatorkreis (Spulensatz) für Superhet-Empfänger mit 3xK, M, L (13-20 m, 19-26 m, 25-68 m, 200-600 m, 800-2000 m) komplett mit Nockenschalter. Ferrocart-Spulen (Markenname "Amenal"). Isolierstoffkörper "Amenit".
Verwendet in Görler Bauplänen (z.B. 119), wobei in den Schaltbildern der Spulensatz vereinfacht dargestellt wird. - Type F271 für Mehrkreisempfänger, Type 270 als Vorkreis bzw. Eingangskreis.
Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Price in first year of sale 27.00 RM
Mentioned in Görler Druckschrift 395a, 1939
