Konstanter T1K-30B/0,8

Konstanter T1K-30B/0,8; Gossen, P., & Co. KG (ID = 1596025) Equipment

Konstanter T1K-30B/0,8; Gossen, P., & Co. KG (ID = 1596027) Equipment
Konstanter T1K-30B/0,8; Gossen, P., & Co. KG (ID = 1235218) Equipment Konstanter T1K-30B/0,8; Gossen, P., & Co. KG (ID = 1235219) Equipment
Konstanter T1K-30B/0,8; Gossen, P., & Co. KG (ID = 1235220) Equipment Konstanter T1K-30B/0,8; Gossen, P., & Co. KG (ID = 1235221) Equipment
Use red slider bar for more.
Konstanter T1K-30B/0,8; Gossen, P., & Co. KG (ID = 1235218) Equipment
Gossen, P., & Co. KG: Konstanter T1K-30B/0,8 [Equipment] ID = 1235218 926x523
Select picture or schematic to display from thumbnails on the right and click for download.
For model Konstanter T1K-30B/0,8, Gossen, P., & Co. KG (PGCD); Erlangen, Nürnberg:

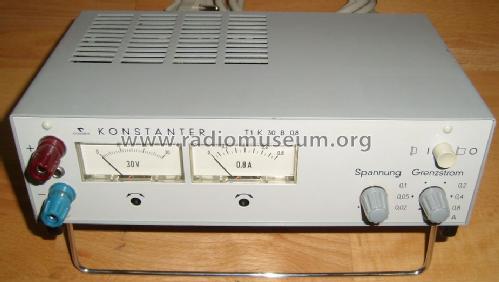

Eigene Sammlung. Frontansicht.

Country:  Germany
Manufacturer / Brand:  Gossen, P., & Co. KG (PGCD); Erlangen, Nürnberg
Year: 1970–1975 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 4:
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Konstanter T1K-30B/0,8 - Gossen, P., & Co. KG PGCD;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 240 x 90 x 140 mm / 9.4 x 3.5 x 5.5 inch

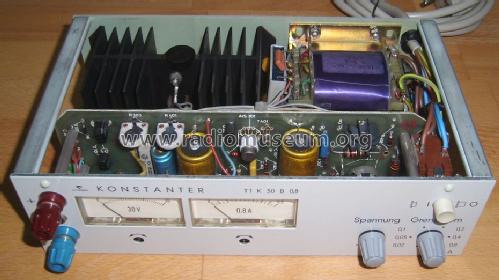

Notes Spannungskonstanter, 0 bis 30 Volt regelbar (über Längstransistor 2N3055), Stromkonstanter 6-stufig einstellbar von 20 mA bis 800 mA, Analoganzeige sep. für Spannung und Strom. Konstantspannungs- und Konstantstrom-Betrieb möglich. Netzschalter, - keine Netzanzeige. Netzleitung fest angeschlossen.
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Source of data - - Data from my own collection
Mentioned in Funk-Technik (FT) (19/1970, S. 736 / Werbeanzeige)

Model page created by Thomas Jennen. See "Data change" for further contributors.
