Konstanter T1K 8B2,5

Konstanter T1K 8B2,5; Gossen, P., & Co. KG (ID = 1596566) Equipment
Konstanter T1K 8B2,5; Gossen, P., & Co. KG (ID = 1596152) Equipment
Use red slider bar for more.
Konstanter T1K 8B2,5; Gossen, P., & Co. KG (ID = 1596152) Equipment
Gossen, P., & Co. KG: Konstanter T1K 8B2,5 [Equipment] ID = 1596152 900x1354
Select picture or schematic to display from thumbnails on the right and click for download.
For model Konstanter T1K 8B2,5, Gossen, P., & Co. KG (PGCD); Erlangen, Nürnberg:

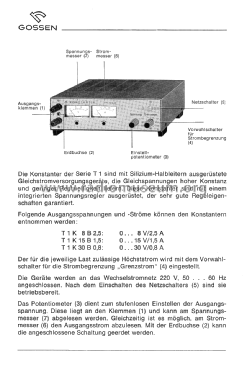

Das Bild stammt aus einer Gebrauchsanleitung von 1973

Country:  Germany
Manufacturer / Brand:  Gossen, P., & Co. KG (PGCD); Erlangen, Nürnberg
Year: 1970–1973 Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Konstanter T1K 8B2,5 - Gossen, P., & Co. KG PGCD;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 241 x 85 x 160 mm / 9.5 x 3.3 x 6.3 inch
Notes

Gossen Konstanter T1K 8B2,5, entnehmbare Ausgangsspannung  0 ... 8,5 Volt.

Spannungsregelung über Potentiometer, Strombegrenzung über 6-stufigen Schalter,
0,1 A bis 2,5 A, Analoganzeige für Spannung und Strom.
Netzleitung fest angeschlossen.

Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) Funk-Technik (FT) (19/1970, S. 736 / Werbeanzeige)

Model page created by Manfred Rauschen. See "Data change" for further contributors.
