- Country
- Germany
- Manufacturer / Brand
- Graetz, Altena (Westfalen)
- Year
- 1951/1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 25311

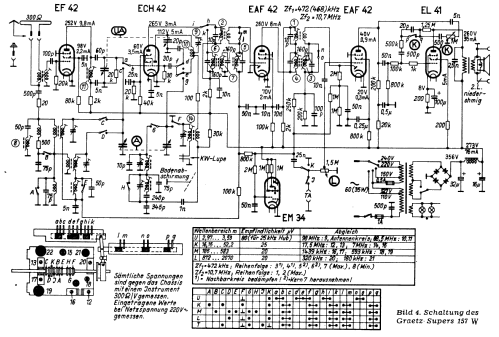

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- Semiconductors
- 300B100L
- Main principle
- Superheterodyne (common); ZF/IF 472/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 5 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
- Power out
- 6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

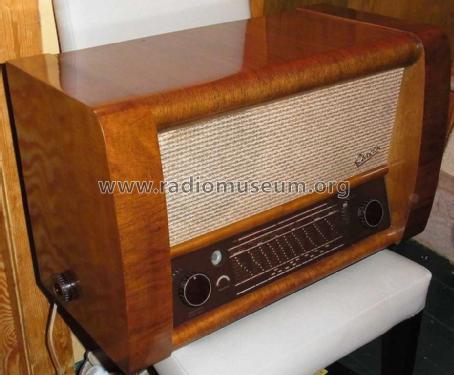

- Model: 157W - Graetz, Altena Westfalen
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 600 x 370 x 295 mm / 23.6 x 14.6 x 11.6 inch
- Notes
-
Dieses Gerät existiert auch in der Version mit moderner UKW-Baueinheit (Graetz Nr. 6911); Umbauanleitung nach Graetz - Werksempfehlung aus dem Jahr 1957 - siehe auch UKW-Baueinheit.

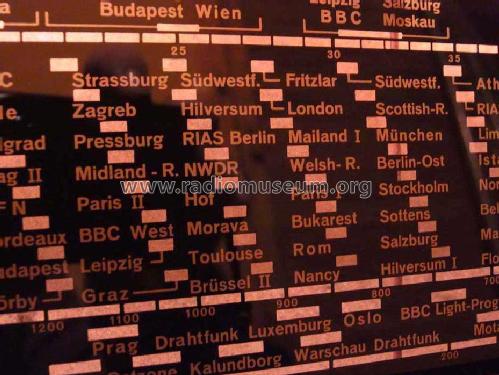

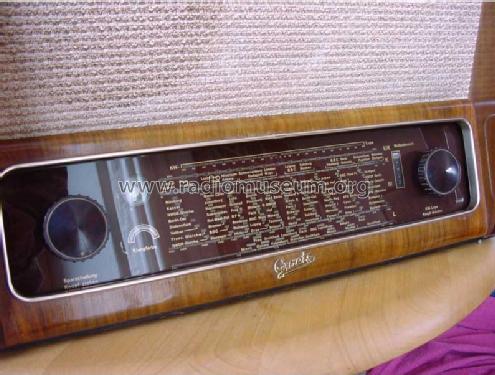

FM - Diskriminator , zwei Varianten - frühes Modell 3-farbige Skala, späteres Modell Skala in braun/gold. Sparschaltung zur Verminderung der Leistungsaufnahme ( von 60 auf 35 W )durch Umschaltung der Sekundärwicklungen. KW-Lupe. Zwischenfrequenz alternativ 468 kHz.
- Net weight (2.2 lb = 1 kg)
- 14.1 kg / 31 lb 0.9 oz (31.057 lb)
- Price in first year of sale
- 348.00 DM
- External source of data
- Wiesmüller
- Source of data
- Lange, Schaltungen der Funkindustrie
- Literature/Schematics (1)
- Funkschau (Neue Empfänger, Heft 22/1951, S443)
