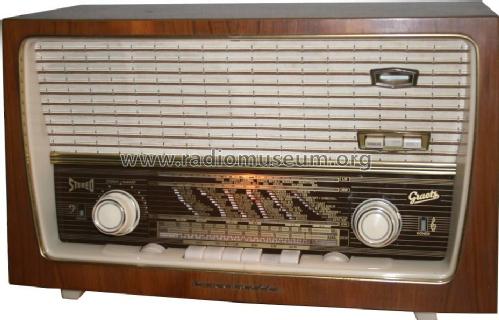

Graetz, Altena: Canzonetta 816 [Radio] ID = 1848399 930x676

Select picture or schematic to display from thumbnails on the right and click for download.

For model Canzonetta 816, Graetz, Altena (Westfalen)

Country:

Germany

Manufacturer / Brand:

Graetz, Altena (Westfalen)

Year: 1959/1960

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

8: ECC85 ECH81 EF89 EABC80 EM84 EBC91 EL84 EL84

Semiconductors (the count is only for transistors)

Tr.Gl.=Metal-rectif.

Main principle	to an article Superheterodyne (common); ZF/IF 460 / 6750 kHz; 2 AF stage(s)
Tuned circuits	6 AM circuit(s) 10 FM circuit(s)
Wave bands	Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage	Alternating Current supply (AC) / 110; 127; 150; 220 Volt
Loudspeaker	2 Loudspeakers
Power out
from Radiomuseum.org	Model: Canzonetta 816 - Graetz, Altena Westfalen
Material	Wooden case
Shape	Tablemodel with Push Buttons.
Dimensions (WHD)	560 x 330 x 255 mm / 22 x 13 x 10 inch
Notes	Abschaltbare Ferritantenne für MW. Stereo-NF-Verstärker (Stereo-Betrieb mit Zusatzlautsprecher), Mittenregler, 2x 5,6 W Endstufe, Betrieb in Parallel- oder Stereo-Schaltung, Anschlüsse für Stereo-TA, Stereo-Magnetton, Aussenlautsprecher, Stereo-Zusatzlautsprecher, getrennte Höhen- und Tiefenregler.
Net weight (2.2 lb = 1 kg)	10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale	359.00 DM
External source of data	Erb
Source of data	HdB d.Rdf-& Ferns-GrH 1959/60

All listed radios etc. from Graetz, Altena (Westfalen)
Here you find 757 models, 668 with images and 584 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.

Collection of João-Afonso Santos (P)

Collection of Walter Nigg (FL)

Collection of Robert Forchert-Mühlbachler (A)

Collection of Antonio Cavallaro (I)

Collection of Paolo Terzano (I)

Collection of Chris Lepiarczyk (D)

Forum contributions about this model

Graetz, Altena: Canzonetta 816

Threads: 1 | Posts: 4

Hits: 2418 Replies: 3 FM problem
Mujahid Khan 06.Jul.12	1 FM problem Hi all: Graetz Canzonetta 816 AM and SW are working fine. The FM is silent. Where should I start looking? Thanks M Khan
Francisco Alemany Molina 08.Jul.12	2 To begin with To get started: Check all valves lit. Change first and then the EABC80 ECC85, check voltage switch switching and BF, check ECH81 tensions, EABC80. In the scheme there are tensions. regards
Mujahid Khan 09.Jul.12	3 Tensions Hi Mr Molina: All the valves light up. I will change and replace the tubes you mentioned. What does "tension" and "BF" mean? Thanks M KHan
Francisco Alemany Molina 09.Jul.12	4 Start from audio and continue until oscillator. Hello I mean concrete measure voltages in circuits, boards and EABC80 ECH81 valves in FM tuner head where is the ECC85,. BF is low frequency, it is to trace the audio stage to the switch. greetings.
