Fähnrich F307 Ch= 300FD

Fähnrich F307 Ch= 300FD; Graetz, Altena (ID = 159995) Television

Fähnrich F307 Ch= 300FD; Graetz, Altena (ID = 159996) Television

Fähnrich F307 Ch= 300FD; Graetz, Altena (ID = 159997) Television

Fähnrich F307 Ch= 300FD; Graetz, Altena (ID = 159998) Television

Fähnrich F307 Ch= 300FD; Graetz, Altena (ID = 159999) Television

Fähnrich F307 Ch= 300FD; Graetz, Altena (ID = 160000) Television
Fähnrich F307 Ch= 300FD; Graetz, Altena (ID = 160016) Television Fähnrich F307 Ch= 300FD; Graetz, Altena (ID = 192686) Television
Fähnrich F307 Ch= 300FD; Graetz, Altena (ID = 192683) Television Fähnrich F307 Ch= 300FD; Graetz, Altena (ID = 192682) Television
Use red slider bar for more.
Fähnrich F307 Ch= 300FD; Graetz, Altena (ID = 160016) Television
Graetz, Altena: Fähnrich F307 Ch= 300FD [Television] ID = 160016 810x613

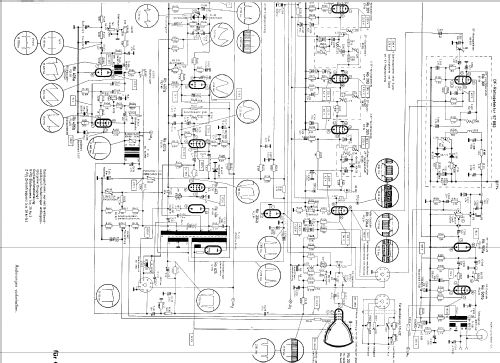

Select picture or schematic to display from thumbnails on the right and click for download.
For model Fähnrich F307 Ch= 300FD, Graetz, Altena (Westfalen):
Graetz Fähnrich F 307 - guter Zustand aber noch nicht restauriert.

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1960/1961 Category: Television Receiver (TV) or Monitor
Valves / Tubes 17: PC86 PC86 PCC84 PCF80 EF80 EF80 EF80 PCL84 EF80 PCL82 ECH81 PCL82 PCF80 PL36 PY88 DY86 AW53-88
Main principle Super-Heterodyne (Super in general)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Radio Control (+Remote Wire etc)
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Fähnrich F307 Ch= 300FD - Graetz, Altena Westfalen
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 507 x 423 x 387 mm / 20 x 16.7 x 15.2 inch
Notes

7 Ge-Dioden und ein Se-Gleichrichter. UHF- (5 Kreise) und VHF-Empfang möglich, 17 Kreise fürs Bild, 3 für den Ton und 1 Hilfskreis. Ohne UHF-Tuner (Dezi-Tuner) ausgestattet entfallen die beiden Rö. PC86 - dann 15 Röhren. Ohne UHF = Chassis 300F - mit UHF = 300FD. Mehrpreis für UHF: 95,- DM.

Ersatz Zeilentrafo 656-030

Net weight (2.2 lb = 1 kg) 20 kg / 44 lb 0.8 oz (44.053 lb)
Price in first year of sale 688.00 DM
Collectors' prices
Source of data HdB d.Rdf-& Ferns-GrH 1960/61
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hilmer Grunert. See "Data change" for further contributors.
