• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24642

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EBF89 ECC83 EM84 EL84 EL84

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

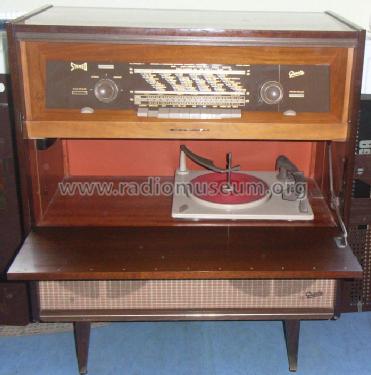

• Model: Grazioso 4 1118 [dunkel/natur] - Graetz, Altena Westfalen

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 700 x 830 x 390 mm / 27.6 x 32.7 x 15.4 inch

• Notes
• Dreh- und abschaltbare Ferritantenne; Anschluss für HF-Stereo-Adapter; Stereo-NF-Verstärker mit 2 Endstufen je 4 W; Raumhall-Einrichtung 1161 gegen Mehrpreis (158,- DM);
  Phono-Chassis = PE 66.

• Net weight (2.2 lb = 1 kg)
• 31 kg / 68 lb 4.5 oz (68.282 lb)

• Price in first year of sale
• 748.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1962/1963
