• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24274

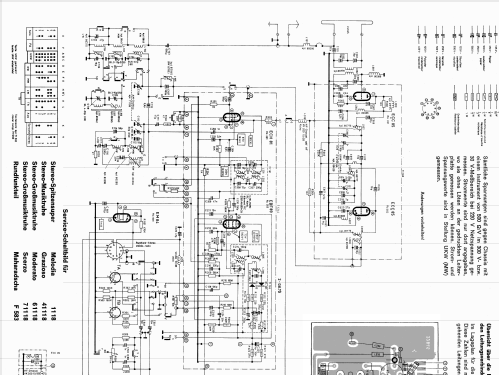

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EBF89 ECC83 EM84 EL84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Melodia 1118 [Edelholz] - Graetz, Altena Westfalen

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 600 x 345 x 245 mm / 23.6 x 13.6 x 9.6 inch

• Notes
• Dioden: 2× OA79. Stereo-NF-Verstärker mit 2 Endstufen je 4 W. Ferritantenne schaltbar. Dieses Gerät verwendet den Multiplex-Stereo-Decoder 1268. Edelholz, dunkel hochglanzpoliert, oder Nussbaum, natur mattiert.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Price in first year of sale
• 468.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1962/1963
