Page 809; Graetz, Altena (ID = 1645395) Radio

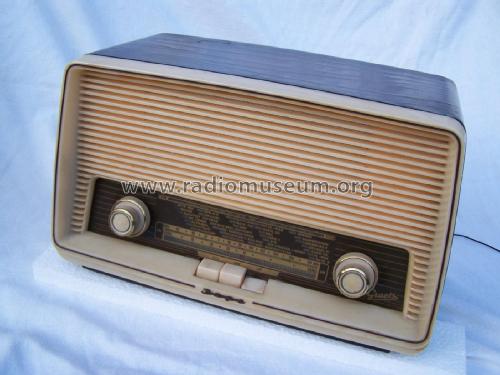

Graetz, Altena: Page 809 [Radio] ID = 1645395 933x567
Select picture or schematic to display from thumbnails on the right and click for download.
For model Page 809, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1959–1961 Category: Broadcast Receiver - or past WW2 Tuner

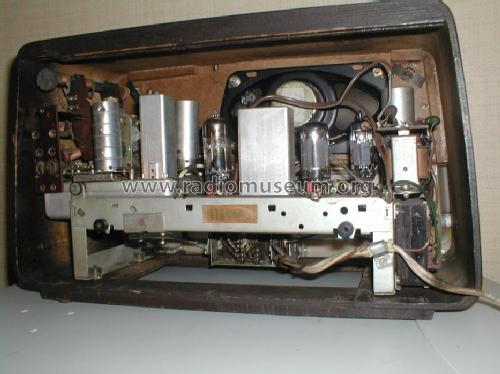

Valves / Tubes 5: EF85 EC92 EF89 EABC80 EL95
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 460 / 6750 kHz; 2 AF stage(s); Reflex
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Page 809 - Graetz, Altena Westfalen
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 340 x 200 x 175 mm / 13.4 x 7.9 x 6.9 inch
Notes

Autotrafo, keine Netztrennung !!!

Reflexschaltung der EF85
Frequenzbereich: UKW 88-108 MHz; MW 510-1600 kHz

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 175.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1960/61
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Graetz, Altena (Westfalen)
Here you find 752 models, 658 with images and 567 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Graetz, Altena: Page 809
Threads: 2 | Posts: 2
Hits: 1659     Replies: 0
graetz: 809; Page
Mario Coelho
26.Nov.03
  1

Has been not usual in model pages for early radio sets to indicate diodes rectifier types, as is usual to the tubes.

In this set is there is an AEG RUNDFUNK LEICHRICHTER   E 250 C 50 k4 672.10/16 type 54295.


Hits: 1872     Replies: 0
graetz: 809; Page
Jens Dehne
25.Sep.03
  1 Achtung - keine Netztrennung ! Chassis ist mit Netz verbunden, der Netztransformator ist nur für 6,3 VAC - Heizung der Röhren ! Erde und Antenne über Trennkondensator.
