• Country
• Germany

• Manufacturer / Brand
• Graetz Radio, Berlin Treptow SO36, Vorkrieg

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1701

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH21 UCH21 UBL21 UY21

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

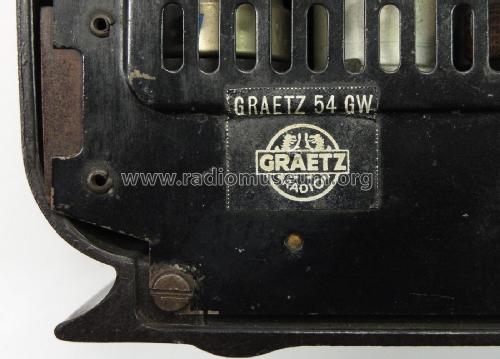

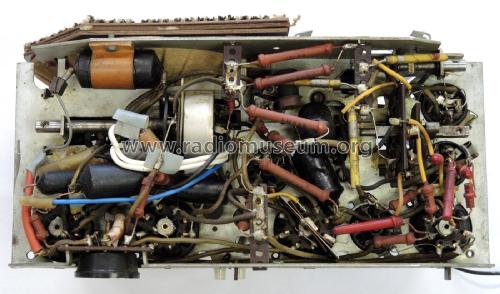

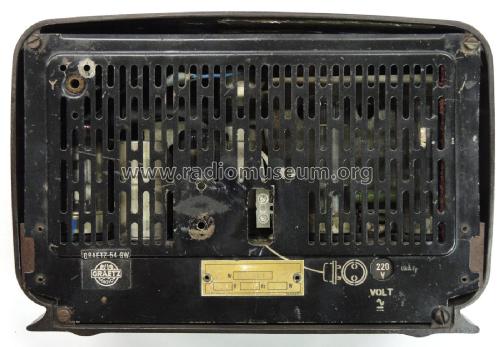

• Model: 54GW / KM - Graetz Radio, Berlin Treptow

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 270 x 165 x 130 mm / 10.6 x 6.5 x 5.1 inch

• Notes

• Ch= Philips 204U. Sogenanntes Verlagerungsgerät.

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• Funkgeschichte der GFGF (Nr. 234, 235, 236 (2017))

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
