Graetzor 41GW

Graetzor 41GW; Graetz Radio, Berlin (ID = 14198) Radio

Graetzor 41GW; Graetz Radio, Berlin (ID = 14199) Radio

Graetzor 41GW; Graetz Radio, Berlin (ID = 4593) Radio

Graetzor 41GW; Graetz Radio, Berlin (ID = 2091856) Radio
Graetzor 41GW; Graetz Radio, Berlin (ID = 701623) Radio Graetzor 41GW; Graetz Radio, Berlin (ID = 701625) Radio
Graetzor 41GW; Graetz Radio, Berlin (ID = 701628) Radio Graetzor 41GW; Graetz Radio, Berlin (ID = 701622) Radio
Graetzor 41GW; Graetz Radio, Berlin (ID = 701624) Radio Graetzor 41GW; Graetz Radio, Berlin (ID = 701626) Radio
Graetzor 41GW; Graetz Radio, Berlin (ID = 701627) Radio Graetzor 41GW; Graetz Radio, Berlin (ID = 701629) Radio
Use red slider bar for more.
Graetzor 41GW; Graetz Radio, Berlin (ID = 701623) Radio

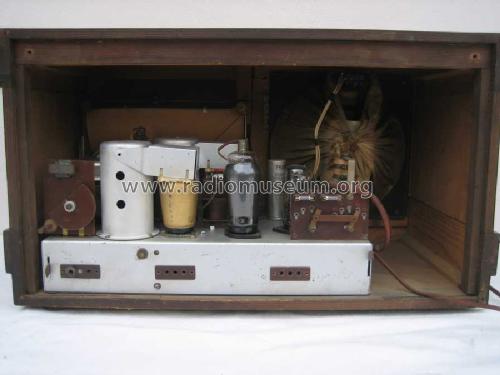

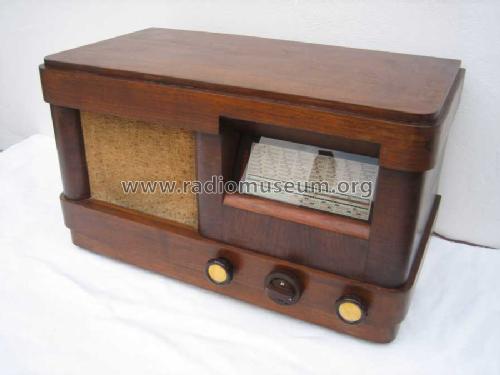

Graetz Radio, Berlin: Graetzor 41GW [Radio] ID = 701623 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model Graetzor 41GW, Graetz Radio, Berlin Treptow SO36, Vorkrieg

Country:  Germany
Manufacturer / Brand:  Graetz Radio, Berlin Treptow SO36, Vorkrieg
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: CH1 CF3 CB2 CL4 CY1 U920
Main principle TRF with diode detector; 2 Special; 1 AF stage(s); Reaction
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Graetzor 41GW - Graetz Radio, Berlin Treptow
Material Wooden case
Dimensions (WHD) 550 x 315 x 285 mm / 21.7 x 12.4 x 11.2 inch
Net weight (2.2 lb = 1 kg) 12.7 kg / 27 lb 15.6 oz (27.974 lb)
Price in first year of sale 245.00 RM
Collectors' prices
Source of data HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
