Graetzor 41W

Graetzor 41W; Graetz Radio, Berlin (ID = 14200) Radio

Graetzor 41W; Graetz Radio, Berlin (ID = 14201) Radio

Graetzor 41W; Graetz Radio, Berlin (ID = 4592) Radio

Graetzor 41W; Graetz Radio, Berlin (ID = 337653) Radio

Graetzor 41W; Graetz Radio, Berlin (ID = 2091456) Radio
Graetzor 41W; Graetz Radio, Berlin (ID = 95659) Radio Graetzor 41W; Graetz Radio, Berlin (ID = 95660) Radio
Graetzor 41W; Graetz Radio, Berlin (ID = 95661) Radio
Use red slider bar for more.
Graetzor 41W; Graetz Radio, Berlin (ID = 95659) Radio
Graetz Radio, Berlin: Graetzor 41W [Radio] ID = 95659 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model Graetzor 41W, Graetz Radio, Berlin Treptow SO36, Vorkrieg:
ebay: jordan_race

Country:  Germany
Manufacturer / Brand:  Graetz Radio, Berlin Treptow SO36, Vorkrieg
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AH1 AF3 AB2 AL4 AZ1
Main principle TRF with diode detector; 2 Special; 1 AF stage(s); Reaction
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Graetzor 41W - Graetz Radio, Berlin Treptow
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 550 x 315 x 285 mm / 21.7 x 12.4 x 11.2 inch
Notes variable Bandbreite. Zur Reduzierung der Leistungsaufnahme kann eine Sparschaltung eingeschaltet werden.
Net weight (2.2 lb = 1 kg) 14.8 kg / 32 lb 9.6 oz (32.599 lb)
Price in first year of sale 229.00 RM
Collectors' prices
Source of data HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 2, Ernst Erb

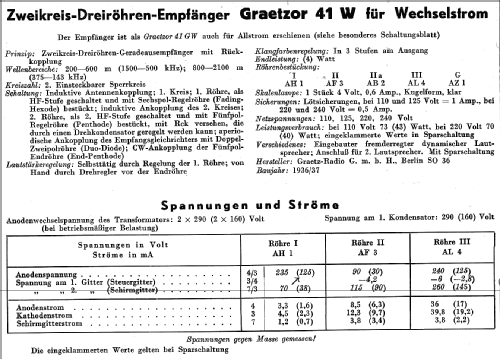

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
