Graetzor 44GW

Graetzor 44GW; Graetz Radio, Berlin (ID = 4589) Radio
Graetzor 44GW; Graetz Radio, Berlin (ID = 1580325) Radio Graetzor 44GW; Graetz Radio, Berlin (ID = 214) Radio
Graetzor 44GW; Graetz Radio, Berlin (ID = 1270812) Radio Graetzor 44GW; Graetz Radio, Berlin (ID = 1270813) Radio
Graetzor 44GW; Graetz Radio, Berlin (ID = 1270814) Radio
Use red slider bar for more.
Graetzor 44GW; Graetz Radio, Berlin (ID = 1580325) Radio

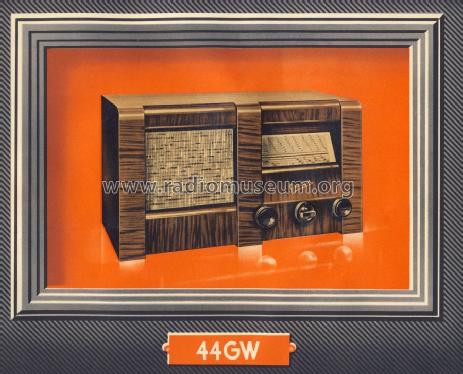

Graetz Radio, Berlin: Graetzor 44GW [Radio] ID = 1580325 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Graetzor 44GW, Graetz Radio, Berlin Treptow SO36, Vorkrieg

Country:  Germany
Manufacturer / Brand:  Graetz Radio, Berlin Treptow SO36, Vorkrieg
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: CH1 CF3 CB2 CL4 CY1 U920
Main principle TRF with diode detector; 2 Special; 1 AF stage(s); Reaction
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Graetzor 44GW - Graetz Radio, Berlin Treptow
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 535 x 310 x 285 mm / 21.1 x 12.2 x 11.2 inch
Notes variable Bandbreite.
Net weight (2.2 lb = 1 kg) 12.4 kg / 27 lb 5 oz (27.313 lb)
Price in first year of sale 222.00 RM
Source of data Handbuch WDRG 1937 / Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
