Super 272 ZWT
Graetz Radio, Berlin Treptow SO36, Vorkrieg
- Country
- Germany
- Manufacturer / Brand
- Graetz Radio, Berlin Treptow SO36, Vorkrieg
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 328027

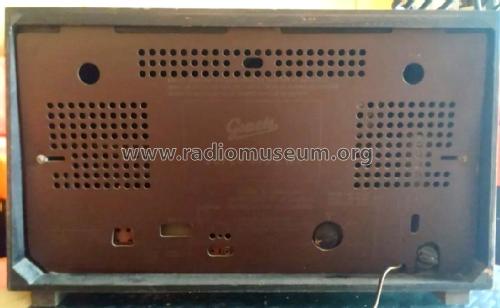

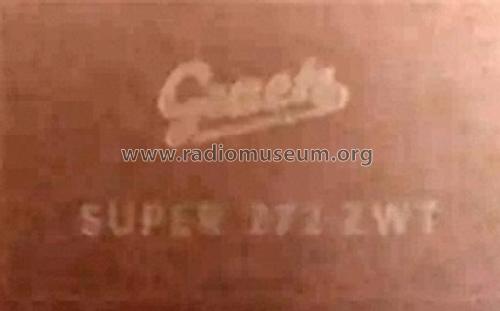

mercadolibre.com.uy_477453055
mercadolibre.com.uy_477453055
mercadolibre.com.uy_477453055
mercadolibre.com.uy_477453055
mercadolibre.com.uy_477453055
- Number of Tubes
- 5
- Number of Transistors
- Semiconductors
- B250C75
- Main principle
- Superheterodyne (common); Export model
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / 110; 125; 150; 220 / 6 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Super 272 ZWT - Graetz Radio, Berlin Treptow
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
-
Graetz Super 272 ZWT ist ein Empfänger für Netz- oder Akkubetrieb. Eingebauter Zerhacker zur Erzeugung der Anodenspannung.
- Author
- Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
