Super 50GW; Graetz Radio, Berlin (ID = 4134) Radio
Graetz Radio, Berlin: Super 50GW [Radio] ID = 4134 708x483
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super 50GW, Graetz Radio, Berlin Treptow SO36, Vorkrieg

Country:  Germany
Manufacturer / Brand:  Graetz Radio, Berlin Treptow SO36, Vorkrieg

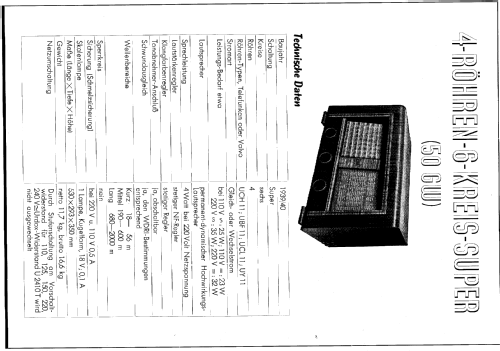

Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH11 UBF11 UCL11 UY11 U2410P
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110, 125, 150, 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Super 50GW - Graetz Radio, Berlin Treptow
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 530 x 350 x 294 mm / 20.9 x 13.8 x 11.6 inch
Notes Rückk.Bandfilter!
Net weight (2.2 lb = 1 kg) 11.7 kg / 25 lb 12.3 oz (25.771 lb)
Price in first year of sale 221.00 RM
Source of data Handbuch WDRG 1939 / Radiokatalog Band 2, Ernst Erb

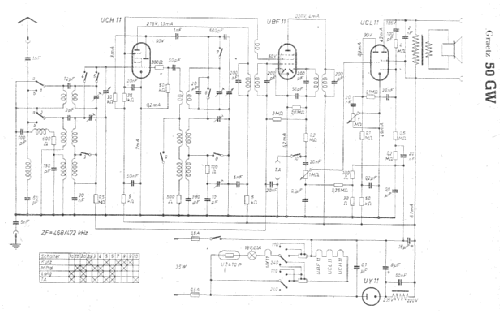

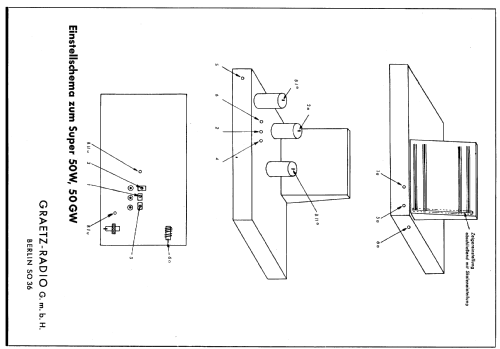

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Funkgeschichte der GFGF (9285)
Picture reference Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.


All listed radios etc. from Graetz Radio, Berlin Treptow SO36, Vorkrieg
Here you find 73 models, 65 with images and 60 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
