Super 50W

Super 50W; Graetz Radio, Berlin (ID = 100737) Radio

Super 50W; Graetz Radio, Berlin (ID = 100730) Radio

Super 50W; Graetz Radio, Berlin (ID = 100731) Radio

Super 50W; Graetz Radio, Berlin (ID = 100732) Radio

Super 50W; Graetz Radio, Berlin (ID = 100733) Radio

Super 50W; Graetz Radio, Berlin (ID = 100734) Radio

Super 50W; Graetz Radio, Berlin (ID = 100735) Radio

Super 50W; Graetz Radio, Berlin (ID = 100736) Radio

Super 50W; Graetz Radio, Berlin (ID = 100738) Radio

Super 50W; Graetz Radio, Berlin (ID = 4569) Radio
Super 50W; Graetz Radio, Berlin (ID = 102867) Radio Super 50W; Graetz Radio, Berlin (ID = 98649) Radio
Super 50W; Graetz Radio, Berlin (ID = 98650) Radio Super 50W; Graetz Radio, Berlin (ID = 32131) Radio
Super 50W; Graetz Radio, Berlin (ID = 220) Radio Super 50W; Graetz Radio, Berlin (ID = 100510) Radio
Super 50W; Graetz Radio, Berlin (ID = 100511) Radio Super 50W; Graetz Radio, Berlin (ID = 706966) Radio
Use red slider bar for more.
Super 50W; Graetz Radio, Berlin (ID = 102867) Radio

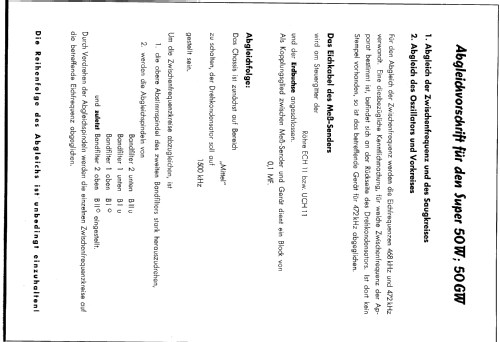

Graetz Radio, Berlin: Super 50W [Radio] ID = 102867 933x626
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super 50W, Graetz Radio, Berlin Treptow SO36, Vorkrieg:

Country:  Germany
Manufacturer / Brand:  Graetz Radio, Berlin Treptow SO36, Vorkrieg
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH11 EBF11 ECL11 AZ11
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Super 50W - Graetz Radio, Berlin Treptow
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 530 x 350 x 294 mm / 20.9 x 13.8 x 11.6 inch
Notes Sparschaltung 52W/30W
Net weight (2.2 lb = 1 kg) 12.3 kg / 27 lb 1.5 oz (27.093 lb)
Price in first year of sale 209.00 RM
Source of data Handbuch WDRG 1939 / Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
