5426

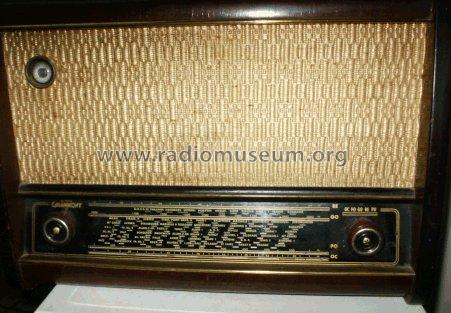

5426; Grammont Radiofotos, (ID = 2301225) Radio 5426; Grammont Radiofotos, (ID = 2301229) Radio
5426; Grammont Radiofotos, (ID = 2301231) Radio 5426; Grammont Radiofotos, (ID = 317603) Radio
5426; Grammont Radiofotos, (ID = 317606) Radio 5426; Grammont Radiofotos, (ID = 317604) Radio
5426; Grammont Radiofotos, (ID = 317605) Radio
Use red slider bar for more.
5426; Grammont Radiofotos, (ID = 2301225) Radio
Grammont Radiofotos,: 5426 [Radio] ID = 2301225 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5426, Grammont (Radiofotos, Fotos); Paris, Malakoff

Country:  France
Manufacturer / Brand:  Grammont (Radiofotos, Fotos); Paris, Malakoff
alternative name

Radiofotos || Société des lampes Fotos
Year: 1955 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6BA7 6BA6 6AV6 EL84 EM34 6BX4
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet. / Ø 19 cm = 7.5 inch
Power out
from Radiomuseum.org Model: 5426 - Grammont Radiofotos, Fotos;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 350 x 240 mm / 18.5 x 13.8 x 9.4 inch
Source of data - - Data from my own collection

Model page created by Claude Weeber † 27.5.2010. See "Data change" for further contributors.



All listed radios etc. from Grammont (Radiofotos, Fotos); Paris, Malakoff
Here you find 152 models, 106 with images and 63 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
