5615

5615; Grammont Radiofotos, (ID = 625760) Radio

5615; Grammont Radiofotos, (ID = 625759) Radio
5615; Grammont Radiofotos, (ID = 535234) Radio 5615; Grammont Radiofotos, (ID = 535235) Radio
5615; Grammont Radiofotos, (ID = 535233) Radio
Use red slider bar for more.
5615; Grammont Radiofotos, (ID = 535234) Radio
Grammont Radiofotos,: 5615 [Radio] ID = 535234 750x563
Select picture or schematic to display from thumbnails on the right and click for download.

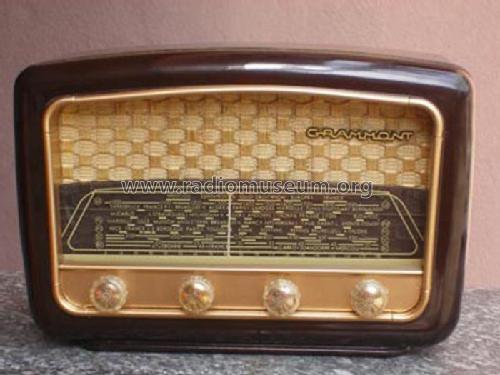

For model 5615, Grammont (Radiofotos, Fotos); Paris, Malakoff

Country:  France
Manufacturer / Brand:  Grammont (Radiofotos, Fotos); Paris, Malakoff
alternative name

Radiofotos || Société des lampes Fotos
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 6BA6 6AV6 EL84 6BX4
Main principle Superheterodyne (common)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: 5615 - Grammont Radiofotos, Fotos;
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 290 x 200 x 140 mm / 11.4 x 7.9 x 5.5 inch
Source of data -- Collector info (Sammler)

Model page created by Gabriele Seccia. See "Data change" for further contributors.



All listed radios etc. from Grammont (Radiofotos, Fotos); Paris, Malakoff
Here you find 152 models, 106 with images and 63 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
