Orchestra
Use red slider bar for more.

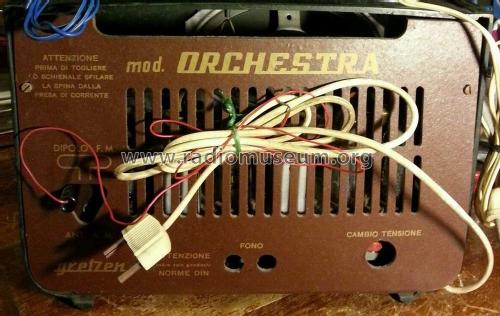

Gretzen; dove/where?: Orchestra [Radio] ID = 2175902 1000x685
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1960 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: ECC85 ECH81 EF89 EABC80 UL84 UY85 | ||||
|---|---|---|---|---|---|
| schematic requested | |||||
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast, Short Wave plus FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | |
| from Radiomuseum.org | Model: Orchestra - Gretzen; dove/where? |
| Material | Bakelite case |
| Shape | Tablemodel with Push Buttons. |
Model page created by Alessandro De Poi. See "Data change" for further contributors.
