1006GWK Bakelit

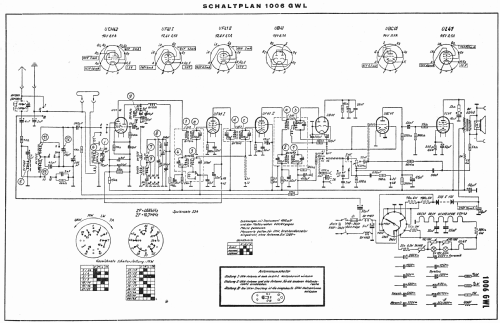

1006GWK; Grundig Radio- (ID = 15075) Radio

1006GWK; Grundig Radio- (ID = 522045) Radio
1006GWK; Grundig Radio- (ID = 205495) Radio 1006GWK; Grundig Radio- (ID = 205496) Radio
1006GWK; Grundig Radio- (ID = 205497) Radio 1006GWK; Grundig Radio- (ID = 239) Radio
1006GWK; Grundig Radio- (ID = 315235) Radio 1006GWK; Grundig Radio- (ID = 315236) Radio
1006GWK; Grundig Radio- (ID = 315237) Radio
Use red slider bar for more.
1006GWK; Grundig Radio- (ID = 205495) Radio
Grundig Radio-: 1006GWK [Radio] ID = 205495 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model 1006GWK Bakelit, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCH42 UF41 UF41 UB41 UBC41 UL41
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage AC/DC-set / 110; 125; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 1006GWK [Bakelit] - Grundig Radio-Vertrieb, RVF,
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 536 x 334 x 218 mm / 21.1 x 13.1 x 8.6 inch
Net weight (2.2 lb = 1 kg) 8.7 kg / 19 lb 2.6 oz (19.163 lb)
Price in first year of sale 228.00 DM
Source of data Kat.d.Rundf.GrossH.1952/53 / Radiokatalog Band 1, Ernst Erb
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 6064 models, 5290 with images and 4093 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
