For model 1010, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: EC92 ECH81 EF41 EABC80 EL41
Main principle Super-Heterodyne (Super in general); ZF/IF 468/10700 kHz
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details

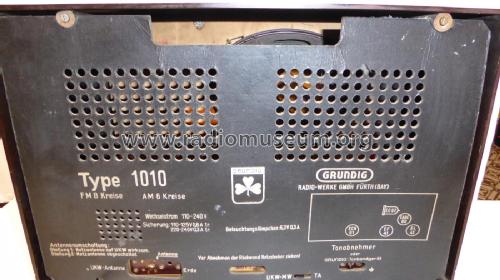

Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 1010 - Grundig Radio-Vertrieb, RVF,
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 463 x 304 x 215 mm / 18.2 x 12 x 8.5 inch
Notes   Die Spannung wird durch Umstecken der Sicherung gewählt.
Net weight (2.2 lb = 1 kg) 5.9 kg / 12 lb 15.9 oz (12.996 lb)

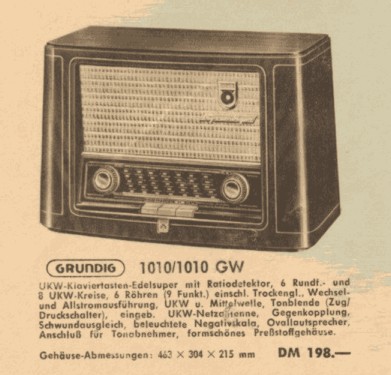

Price in first year of sale 198.00 DM
Collectors' prices
Source of data Kat.d.Rundf.GrossH.1952/53 / Radiokatalog Band 1, Ernst Erb
