1018WI

1018WI; Grundig Radio- (ID = 239061) Radio
Use red slider bar for more.
1018WI; Grundig Radio- (ID = 239061) Radio

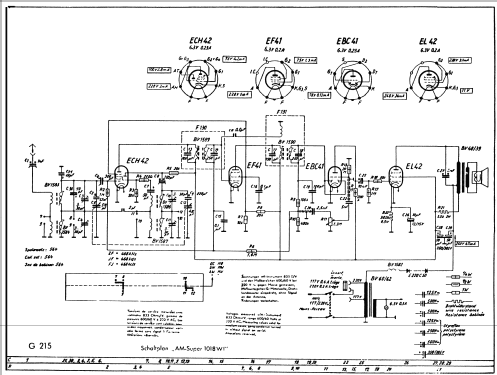

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1954 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH42 EF41 EBC41 EL42
Main principle Superheterodyne (common); ZF/IF 468 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 117/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 1018WI - Grundig Radio-Vertrieb, RVF,
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Mentioned in -- Original-techn. papers.

Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
