For model Type 165W/UKW/H / Super 165W/UKW/H, Grundig (Radio-Vertrieb, RVF, Radiowerke):

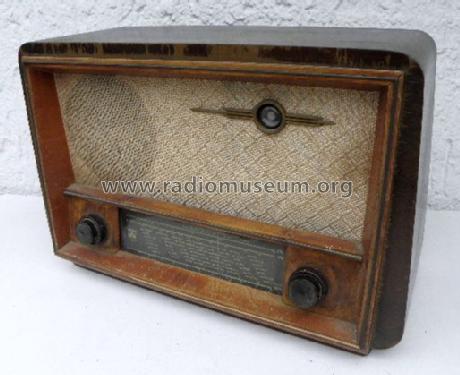

Grundig W 165 W / UKW / H

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EAF42 or EF41 EAF42 EL41 EM4
Semiconductors (the count is only for transistors) 220B60
Main principle Super-Heterodyne (Super in general); ZF/IF 468 / 1070 kHz
Tuned circuits 6 AM circuit(s)     6 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Type 165W/UKW/H / Super 165W/UKW/H - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 505 x 335 x 232 mm / 19.9 x 13.2 x 9.1 inch
Net weight (2.2 lb = 1 kg) 8.5 kg / 18 lb 11.6 oz (18.722 lb)
Price in first year of sale 261.00 DM
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb

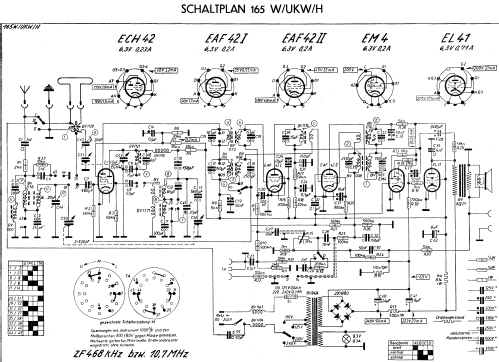

Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 4
Mentioned in -- Original-techn. papers.
