2029PM/WE; Grundig Radio- (ID = 232677) Radio

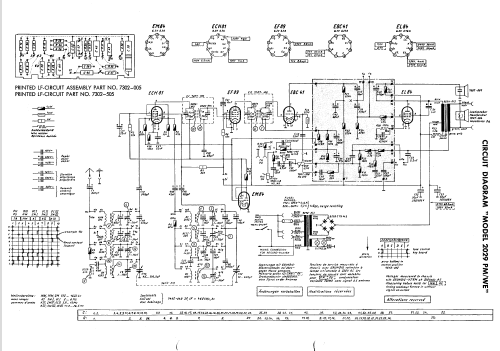

Grundig Radio-: 2029PM/WE [Radio] ID = 232677 812x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 2029PM/WE, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1959 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EF89 EBC41 EL84 EM84
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: 2029PM/WE - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes Exportgerät mit Mittelwelle und 3× Kurzwelle.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Josef Pilz. See "Data change" for further contributors.
