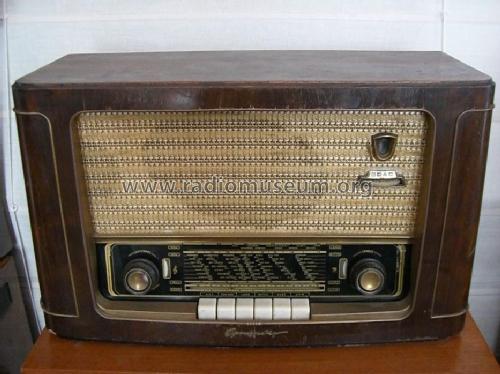

3040GW; Grundig Radio- (ID = 418450) Radio 3040GW; Grundig Radio- (ID = 1175820) Radio
Use red slider bar for more.
3040GW; Grundig Radio- (ID = 76362) Radio
Grundig Radio-: 3040GW [Radio] ID = 76362 634x403
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3040GW, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UC92 UCH81 UF41 UF41 UM85 UABC80 UL41
Main principle Super-Heterodyne (Super in general); ZF/IF 468/10700 kHz
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage AC/DC-set / 110; 125; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: 3040GW - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 573 x 345 x 242 mm / 22.6 x 13.6 x 9.5 inch
Notes
Net weight (2.2 lb = 1 kg) 9.1 kg / 20 lb 0.7 oz (20.044 lb)
Price in first year of sale 320.00 DM
Collectors' prices
Source of data Kat.d.Rundf.GrossH.1953/54 / Radiokatalog Band 1, Ernst Erb
