- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1950/1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 1886
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Lange

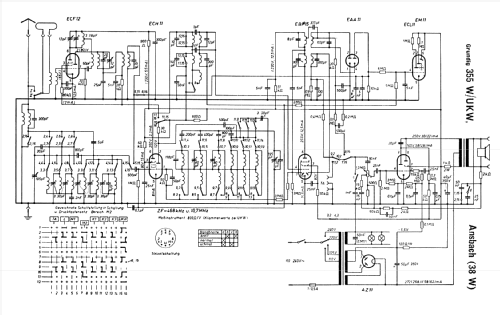

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 355UKW - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 590 x 378 x 285 mm / 23.2 x 14.9 x 11.2 inch
- Notes
- variable Bandbreite; Ratio-Detektor.
- Net weight (2.2 lb = 1 kg)
- 14.2 kg / 31 lb 4.4 oz (31.278 lb)
- Price in first year of sale
- 380.00 DM
- Source of data
- Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb
- Mentioned in
- Funkschau (5015)
