380GW/UKW
Use red slider bar for more.
Grundig Radio-: 380GW/UKW [Radio] ID = 1962841 1400x856
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Grundig Portugal || Grundig USA / Lextronix | ||||
|---|---|---|---|---|---|
| Year: 1950/1951 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 7: UCF12 UCH11 UF15 UAA11 UM11 UBF11 UL11 |
| Main principle | Superheterodyne (common); ZF/IF 468/10700 kHz |
|---|---|
| Tuned circuits | 7 AM circuit(s) 8 FM circuit(s) |
| Wave bands | Broadcast, Long Wave, more than 2 x SW plus FM or UHF. |
| Details | |
| Power type and voltage | AC/DC-set / 110; 125; 220; 240 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch |
| Power out | |
| from Radiomuseum.org | Model: 380GW/UKW - Grundig Radio-Vertrieb, RVF, |
| Material | Wooden case |
| Shape | Tablemodel with Push Buttons. |
| Dimensions (WHD) | 605 x 392 x 288 mm / 23.8 x 15.4 x 11.3 inch |
| Notes | variable Bandbreite; Ratio-Detektor. |
| Net weight (2.2 lb = 1 kg) | 13.3 kg / 29 lb 4.7 oz (29.295 lb) |
| Source of data | Radiokatalog Band 1, Ernst Erb |

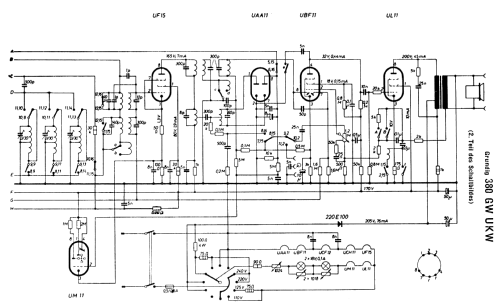

| Circuit diagram reference | Lange Schaltungen der Funkindustrie, Buch 4 |
| Mentioned in | Funkschau (5015) |
