50TE

50TE; Grundig Radio- (ID = 238145) Radio

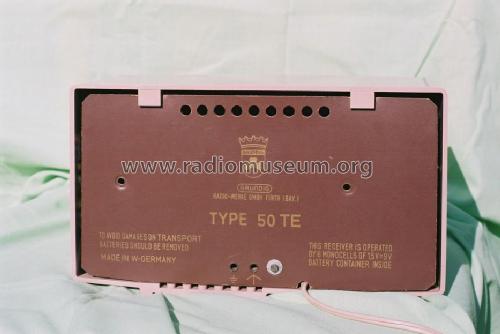

50TE; Grundig Radio- (ID = 332973) Radio 50TE; Grundig Radio- (ID = 332974) Radio
50TE; Grundig Radio- (ID = 1095271) Radio 50TE; Grundig Radio- (ID = 1487296) Radio
50TE; Grundig Radio- (ID = 1487297) Radio 50TE; Grundig Radio- (ID = 1487298) Radio
Use red slider bar for more.
50TE; Grundig Radio- (ID = 332973) Radio
Grundig Radio-: 50TE [Radio] ID = 332973 933x624
Select picture or schematic to display from thumbnails on the right and click for download.
For model 50TE, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: OC44 OC45 OC45 OC71 OC74 OC74 OA70 OA70
Main principle Superheterodyne (common); ZF/IF 460 kHz; Export model
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
Power out
from Radiomuseum.org Model: 50TE - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 250 x 145 x 115 mm / 9.8 x 5.7 x 4.5 inch
Notes Exportgerät.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Josef Pilz. See "Data change" for further contributors.
