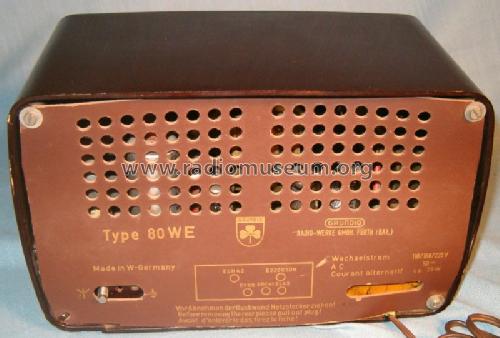

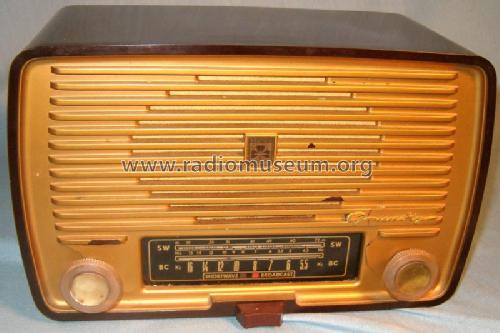

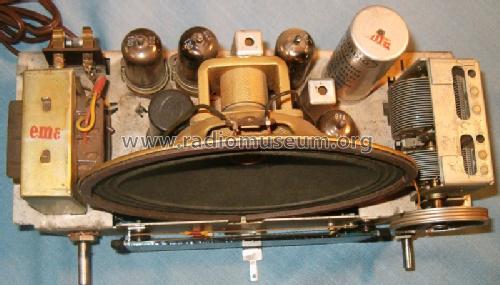

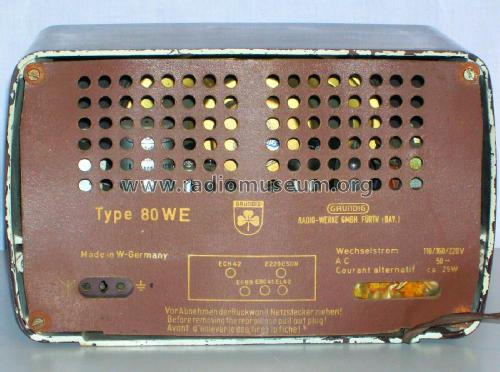

Grundig Radio-: 80-WE [Radio] ID = 636310 800x646
Select picture or schematic to display from thumbnails on the right and click for download.
For model 80-WE, Grundig (Radio-Vertrieb, RVF, Radiowerke):
ebay 280365196801. With kind permission of the seller.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1954 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH42 EF89 EBC41 EL42
Main principle Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110-125; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 80-WE - Grundig Radio-Vertrieb, RVF,
Material Bakelite case
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 11 x 7 x 6 inch / 279 x 178 x 152 mm
Notes KW (SW): Widersprüchliche Angaben in Schaltbild und Abgleichtabelle (There is a discrepancy between schematic and alignment table): Bereich (range) 5,95 -18 MHz; Abgleich bei (align at) 4,5 & 14 MHz.
Exportmodell. Gleichrichter: E220C50N. Grundig 80-WE;
AM: 550 - 1600 KHz, SW: 4.5 - 16 MHz (72 - 19 m) as seen on original scale.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Antonio Barros-Regada. See "Data change" for further contributors.
