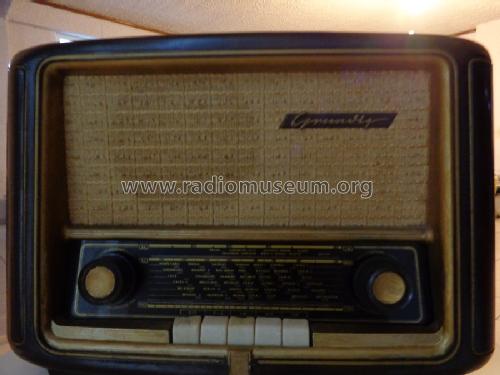

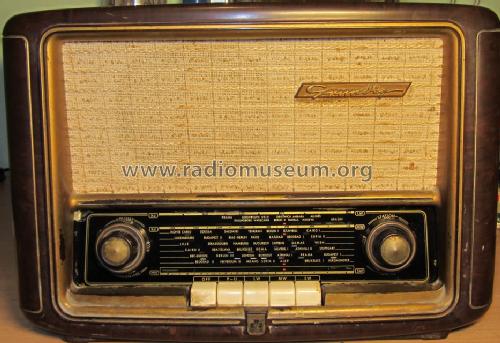

Grundig Radio-: 946W [Radio] ID = 1431096 933x641
Select picture or schematic to display from thumbnails on the right and click for download.

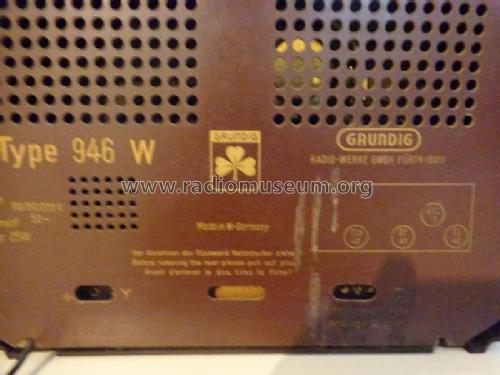

For model 946W, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1953 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH42 EF41 EBC41 EL42
schematic requested
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 150; 220 Volt

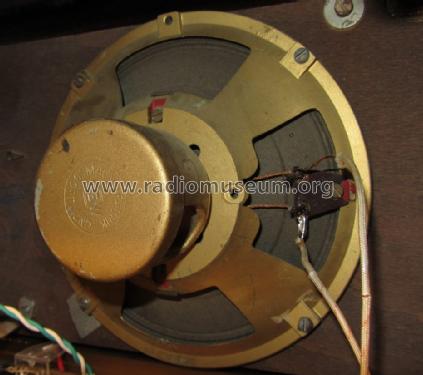

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 14 cm = 5.5 inch
Power out
from Radiomuseum.org Model: 946W - Grundig Radio-Vertrieb, RVF,
Material Bakelite or Plastics (type unknown)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 420 x 285 x 195 mm / 16.5 x 11.2 x 7.7 inch
Notes

Siehe auch Grundig 946WX
Gehäuse-Oberteil ist leicht gewölbt.

Net weight (2.2 lb = 1 kg) 5.4 kg / 11 lb 14.3 oz (11.894 lb)

Model page created by Konstantinos Christoforou. See "Data change" for further contributors.
