For model Amalienburg electronic 1350 Color, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Bild aus VDRG Katalog 1969- 1970

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1969/1970 Category: Television Receiver (TV) or Monitor
Valves / Tubes 10: PL95 PCL805 PCF802 ECC82 PY88 PL504 PY500A PL509 GY501 A63-11X
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out 2.5 W (max.)
from Radiomuseum.org Model: Amalienburg electronic 1350 Color - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 910 x 890 x 625 mm / 35.8 x 35 x 24.6 inch
Notes

63 cm Farbfernsehgerät- Standgerät, mit Allbereich- Tuner. Auf Wunsch Fernbedienung VII Color für DM 44,00 erhältlich.

Ausführung: Schrank, barock. Nußbaum, mitteldunkel mattiert und antik behandelt, mit handgefertigten Schnitzwerk

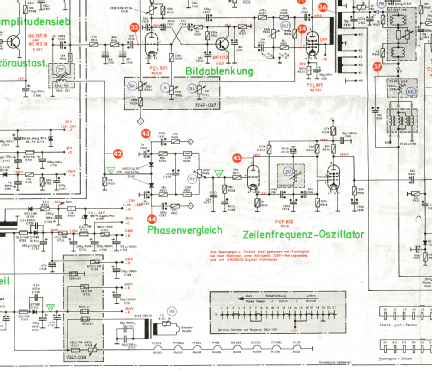

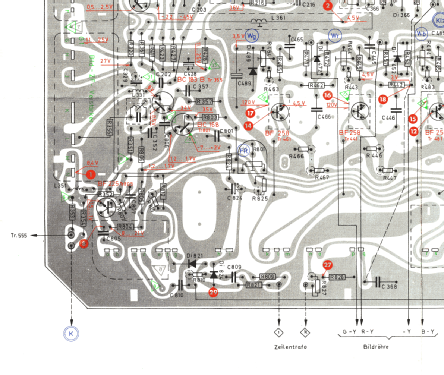

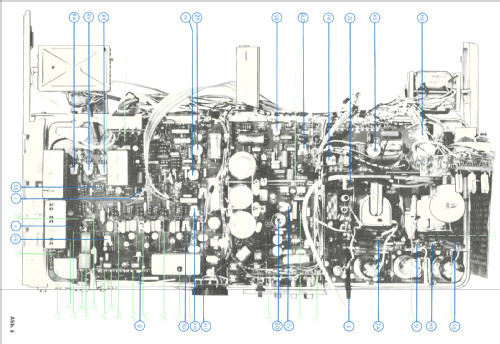

Literature/Schematics (2) -- Original-techn. papers.

Model page created by Josef Pilz. See "Data change" for further contributors.
