Drucktasten-Autosuper AS53

Drucktasten-Autosuper AS53; Grundig Radio- (ID = 12580) Car Radio

Drucktasten-Autosuper AS53; Grundig Radio- (ID = 1558955) Car Radio
Drucktasten-Autosuper AS53; Grundig Radio- (ID = 1558956) Car Radio Drucktasten-Autosuper AS53; Grundig Radio- (ID = 1558957) Car Radio

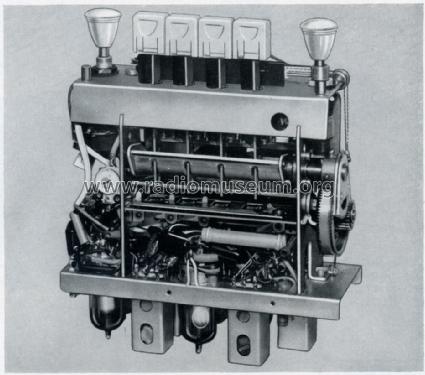

Drucktasten-Autosuper AS53; Grundig Radio- (ID = 1558958) Car Radio
Use red slider bar for more.

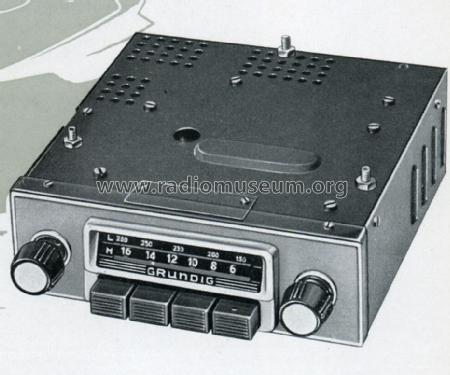

Drucktasten-Autosuper AS53; Grundig Radio- (ID = 1558956) Car Radio
Grundig Radio-: Drucktasten-Autosuper AS53 [Car Radio] ID = 1558956 933x777
Select picture or schematic to display from thumbnails on the right and click for download.
For model Drucktasten-Autosuper AS53, Grundig (Radio-Vertrieb, RVF, Radiowerke):

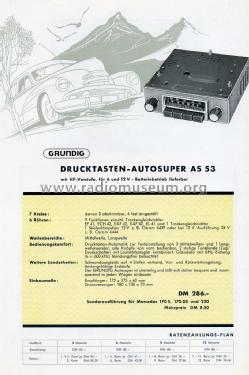

Quelle: Grundig Prospekt zum Drucktasten-Autosuper AS53

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1953/1954 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 5: EF41 ECH42 EAF42 EAF42 EL41
Semiconductors (the count is only for transistors) B250C75 33/6E or. 33/12E
Main principle Superhet with RF-stage; ZF/IF 468 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6/12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Drucktasten-Autosuper AS53 - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 172 x 60 x 175 mm / 6.8 x 2.4 x 6.9 inch
Notes

Drucktasten-Automatik zur Festeinstellung von 3 Mittelwellen- und 1 Langwellensender.
Zweistufige Tonblende (Zug/Druckschalter) mit Lautstärkeregler kombiniert,
Glasskala mit kHz-Eichung (6 = 600 kHz) blendungsfrei beleuchtet.

Schwundausgleich auf 4 Röhren wirkend, Vor- und Rückwärtsregelung.

Stromversorger: 180 x 130 x 70 mm, 2,4 kg.

Net weight (2.2 lb = 1 kg) 2.3 kg / 5 lb 1.1 oz (5.066 lb)
Price in first year of sale 286.00 DM
External source of data Erb
Source of data Rundfunk- und Fernseh-Katalog 1953/54
Mentioned in -- Original prospect or advert
Literature/Schematics (1) Lange, Schaltungen der Funkindustrie (Band IV, Grundig Rundfunk-Geräte, S. 346)
