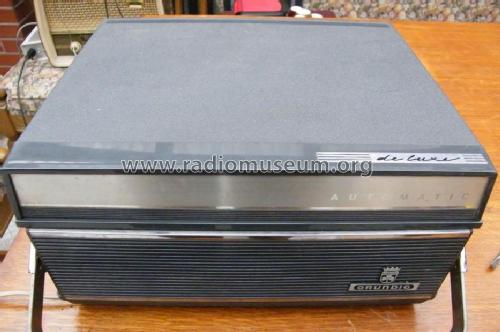

Bayreuth Automatic de Luxe (TK23L)

Bayreuth Automatic de Luxe ; Grundig Radio- (ID = 1374447) R-Player

Bayreuth Automatic de Luxe ; Grundig Radio- (ID = 2108265) R-Player

Bayreuth Automatic de Luxe ; Grundig Radio- (ID = 2449909) R-Player

Bayreuth Automatic de Luxe ; Grundig Radio- (ID = 2449910) R-Player
Bayreuth Automatic de Luxe ; Grundig Radio- (ID = 296807) R-Player Bayreuth Automatic de Luxe ; Grundig Radio- (ID = 296809) R-Player
Bayreuth Automatic de Luxe ; Grundig Radio- (ID = 296810) R-Player Bayreuth Automatic de Luxe ; Grundig Radio- (ID = 296811) R-Player
Bayreuth Automatic de Luxe ; Grundig Radio- (ID = 296812) R-Player Bayreuth Automatic de Luxe ; Grundig Radio- (ID = 296813) R-Player
Bayreuth Automatic de Luxe ; Grundig Radio- (ID = 296814) R-Player Bayreuth Automatic de Luxe ; Grundig Radio- (ID = 858849) R-Player
Bayreuth Automatic de Luxe ; Grundig Radio- (ID = 858851) R-Player Bayreuth Automatic de Luxe ; Grundig Radio- (ID = 858853) R-Player
Use red slider bar for more.
Bayreuth Automatic de Luxe ; Grundig Radio- (ID = 296807) R-Player
Grundig Radio-: Bayreuth Automatic de Luxe [R-Player] ID = 296807 922x649
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bayreuth Automatic de Luxe (TK23L), Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1965–1967 Category: Sound/Video Recorder and/or Player
Valves / Tubes 5: EF83 ECL86 ECC81 EF86 EM84
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Bayreuth Automatic de Luxe - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 338 x 272 x 122 mm / 13.3 x 10.7 x 4.8 inch
Notes

Technisch wie Grundig TK23L Automatic de Luxe, jedoch andere Farbgebung.
Das Modell Bayreuth Automatic de Luxe hat keine weitere Typbezeichnung.

Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Mentioned in -- Original prospect or advert
Literature/Schematics (1) -- Schematic

Model page created by Alard Roose. See "Data change" for further contributors.
