CD-4 Einsteckmodul

CD-4 Einsteckmodul; Grundig Radio- (ID = 757575) mod-past25
CD-4 Einsteckmodul; Grundig Radio- (ID = 757576) mod-past25
CD-4 Einsteckmodul; Grundig Radio- (ID = 757577) mod-past25
CD-4 Einsteckmodul; Grundig Radio- (ID = 757574) mod-past25
Use red slider bar for more.
CD-4 Einsteckmodul; Grundig Radio- (ID = 757574) mod-past25
Grundig Radio-: CD-4 Einsteckmodul [mod-past25] ID = 757574 933x868
Select picture or schematic to display from thumbnails on the right and click for download.
For model CD-4 Einsteckmodul, Grundig (Radio-Vertrieb, RVF, Radiowerke):

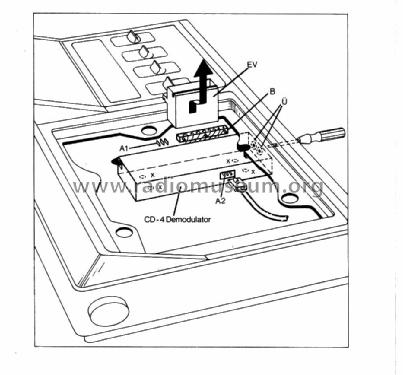

Bild aus Servicedoku.
Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name
Grundig Portugal || Grundig USA / Lextronix
Year: 1974 Category: Radio module post 1925 (not a part, not a key)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Power type and voltage Powered by external power supply or a main unit. / 16 Volt
Loudspeaker - For headphones or amp.
Power out
from Model: CD-4 Einsteckmodul - Grundig Radio-Vertrieb, RVF,
Shape Miscellaneous shapes - described under notes.
Notes Modul zum Einbau z.B. in Grundig RTV1040 HiFi zur Demodulation von Quadrosignalen aus einem speziellen CD-4 Tonabnehmersystem.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
