City-Boy 203 Export

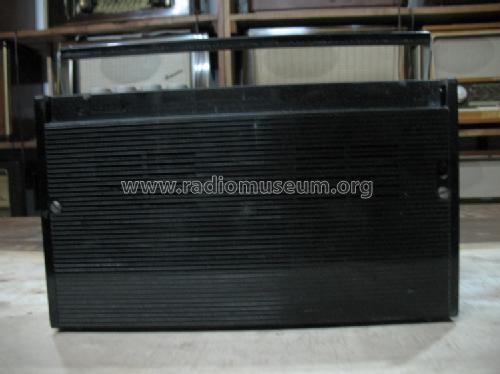

City-Boy 203 Export; Grundig Radio- (ID = 1372958) Radio City-Boy 203 Export; Grundig Radio- (ID = 1372959) Radio
Use red slider bar for more.
City-Boy 203 Export; Grundig Radio- (ID = 1372958) Radio
Grundig Radio-: City-Boy 203 Export [Radio] ID = 1372958 620x465
Select picture or schematic to display from thumbnails on the right and click for download.
For model City-Boy 203 Export, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF121 AF125 AF126 AF126 AF126 TF65 TF65 AC153 AC153
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 2×4,5; 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: City-Boy 203 Export - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 160 x 70 mm / 10.2 x 6.3 x 2.8 inch
Notes Netzbetrieb mit nachträglich einsetzbarem Netzteil TN9 (52,- DM) möglich.
Technische Daten und Ausstattung wie City-Boy 204, jedoch andere Wellenbereiche.
Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Price in first year of sale 295.00 DM
Source of data Handbuch VDRG 1964/1965 / Radiokatalog Band 1, Ernst Erb
