Color electronic T 1105

Color electronic T 1105; Grundig Radio- (ID = 2081144) Television

Color electronic T 1105; Grundig Radio- (ID = 2081146) Television

Color electronic T 1105; Grundig Radio- (ID = 2081149) Television

Color electronic T 1105; Grundig Radio- (ID = 2081150) Television

Color electronic T 1105; Grundig Radio- (ID = 2081151) Television

Color electronic T 1105; Grundig Radio- (ID = 2081152) Television

Color electronic T 1105; Grundig Radio- (ID = 2081153) Television

Color electronic T 1105; Grundig Radio- (ID = 2081154) Television

Color electronic T 1105; Grundig Radio- (ID = 2082216) Television
Use red slider bar for more.

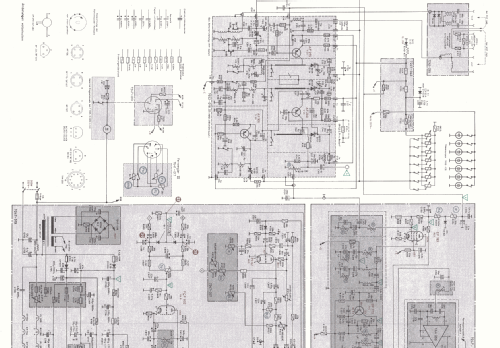

Color electronic T 1105; Grundig Radio- (ID = 2081144) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1969/1970 Category: Television Receiver (TV) or Monitor
Valves / Tubes 18: EF183 PL802 EF184 PCH200 PL95 EF184 EF184 EF184 PC92 PL805 PCF802 PL504 PY88 PL509 PY500 ECC82 GY501 A63-11X or A63-200X
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Color electronic T 1105 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

Grundig Farbfernsehgerät T 1105 mit VHF/UHF Allbereich Tuner mit Dioden Abstimmung. VHF - UHF Drucktasten. Auf Wunsch Fernbedienung VI Color DM 44,00 Edelholz Gehäuse, mitteldunkel poliert oder hell mattiert.



Price in first year of sale 2'048.00 DM
Literature/Schematics (2) -- Original-techn. papers.

Model page created by Josef Pilz. See "Data change" for further contributors.
