For model Color electronic T 1350, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Bild aus VDRG Katalog 1969 - 1970

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1969/1970 Category: Television Receiver (TV) or Monitor
Valves / Tubes 10: PL95 PCL805 PCF802 ECC82 PY88 PL504 PY500A PL509 GY501 A63-120X
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out 2.5 W (max.)
from Radiomuseum.org Model: Color electronic T 1350 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 750 x 520 x 590 mm / 29.5 x 20.5 x 23.2 inch
Notes

63 cm- Farbfernseh- Tischgerät mit Allbereich- Tuner. Auf Wunsch Fernbedienung VII Color erhältlich DM 44,00

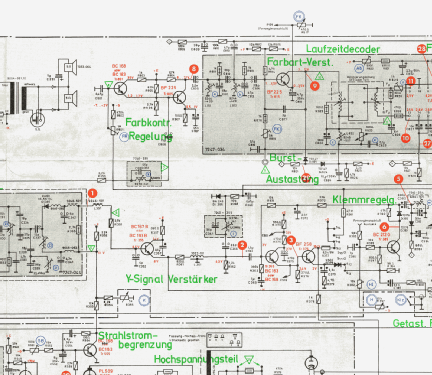

Literature/Schematics (2) -- Original-techn. papers.
