Color T 1650

Grundig (Radio-Vertrieb, RVF, Radiowerke)

Data
Forum
Pictures
Collections

  • Year
  • 1970/1971
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 296897
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

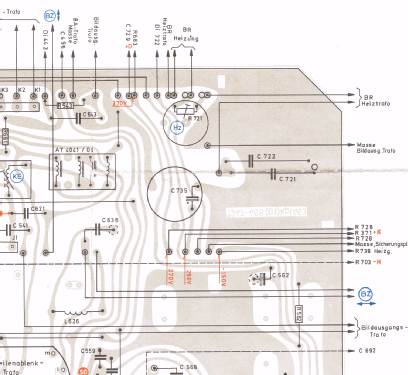

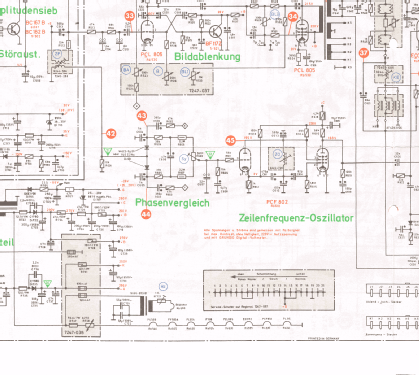

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Number of Transistors
  • 34
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 38900 kHz
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 2.5 W (max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Color T 1650 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 750 x 520 x 580 mm / 29.5 x 20.5 x 22.8 inch
  • Notes

  • Farbfernseh-Tischgerät mit VHF/UHF Schaltdioden-Tuner.
    Fernbedienung Fernregler VII Color nachrüstbar. Zusätzlich 3 IC.

    Ausführung:
    Edelholz mitteldunkel hochglanzpoliert oder hell mattiert, verschliessbare Klappe für Bedienungsleiste.

  • Net weight (2.2 lb = 1 kg)
  • 48 kg / 105 lb 11.6 oz (105.727 lb)
  • Price in first year of sale
  • 2,498.00 DM
  • Literature/Schematics (2)
  • -- Original-techn. papers.
  • Author
  • Model page created by Josef Pilz. See "Data change" for further contributors.
