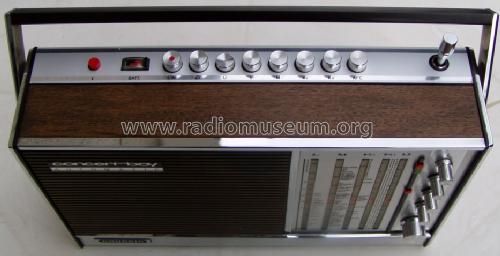

Concert-Boy Automatic 210; Grundig Radio- (ID = 464991) Radio Concert-Boy Automatic 210; Grundig Radio- (ID = 464994) Radio

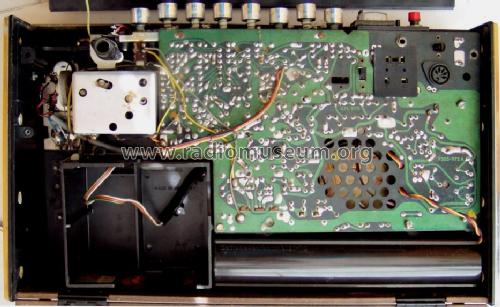

Concert-Boy Automatic 210; Grundig Radio- (ID = 464995) Radio Concert-Boy Automatic 210; Grundig Radio- (ID = 464998) Radio
Concert-Boy Automatic 210; Grundig Radio- (ID = 465000) Radio Concert-Boy Automatic 210; Grundig Radio- (ID = 465002) Radio
Concert-Boy Automatic 210; Grundig Radio- (ID = 1541690) Radio
Use red slider bar for more.

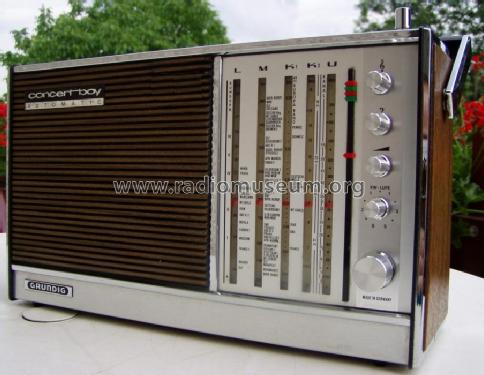

Concert-Boy Automatic 210; Grundig Radio- (ID = 464993) Radio
Grundig Radio-: Concert-Boy Automatic 210 [Radio] ID = 464993 905x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Concert-Boy Automatic 210, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Thanks for Mr.Rosta György Hungary, Budapest! Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110-220/ 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Concert-Boy Automatic 210 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 355 x 210 x 110 mm / 14 x 8.3 x 4.3 inch
Notes

Siehe auch Exportversion Transistor 1005 Automatic.

Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 6052 models, 5261 with images and 4077 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Grundig Radio-: Concert-Boy Automatic 210
Threads: 1 | Posts: 1
Hits: 2569     Replies: 0
grundig: 210; Concert-Boy Automatic
Hans M. Knoll
16.Jun.08
  1

Bei diesem Geraet ist Netzbetrieb nur mit einem eingesetztem NETZTEIL  TN12 oder TN12a

moeglich.

Danke an G. Richter.



knoll
