Concert-Boy Transistor 200; Grundig Radio- (ID = 14080) Radio
Grundig Radio-: Concert-Boy Transistor 200 [Radio] ID = 14080 683x546
Select picture or schematic to display from thumbnails on the right and click for download.

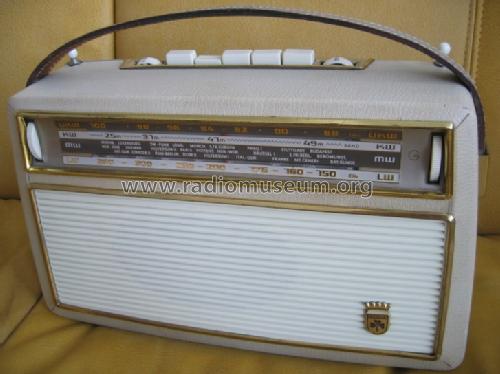

For model Concert-Boy Transistor 200, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1961–1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: OC171 OC170 OC170 OC170 OC75 OC71 TF78 TF78 OA172 OA172 OA70

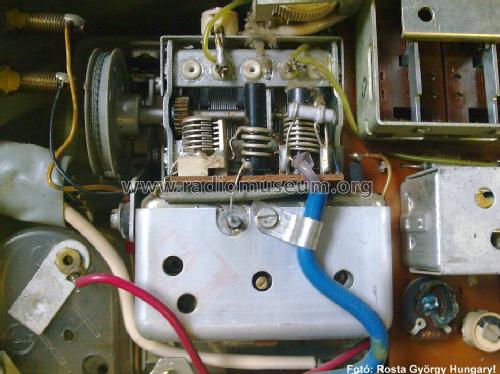

Main principle Superheterodyne (common); ZF/IF 460/6700 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110-125 / 220 / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Concert-Boy Transistor 200 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 205 x 110 mm / 12.6 x 8.1 x 4.3 inch
Notes Ovallautsprecher 9,5 x 14,5 cm. Getrennte Höhen/Tiefen-Regler. Preis in Österreich: ATS 2,257. Außer den beiden Endstufen - Transistoren vom Typ TF 78 haben alle Transistoren Steckfassungen, so daß sie leicht gewechselt werden können.
Net weight (2.2 lb = 1 kg) 4.8 kg / 10 lb 9.2 oz (10.573 lb)
Price in first year of sale 328.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1961/62 / Radiokatalog Band 1, Ernst Erb


All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 6057 models, 5282 with images and 4090 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Grundig Radio-: Concert-Boy Transistor 200
Threads: 1 | Posts: 1
Hits: 1913     Replies: 0
grundig: Transistor 200; Concert-Boy
Rainer Sluga
16.Feb.14
  1

Nur als Info : In einem mir vorliegenden Gerät ( ser.# n.v.) sind anstelle 3 x  OC170  3 x AF116 eingesetzt.
